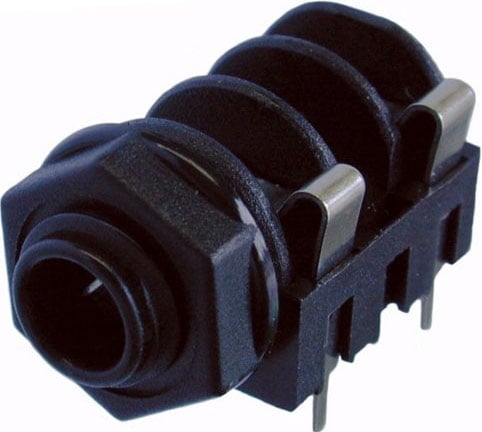

Neutrik NMJ4HFD2
1/4" Mono Switched Jack (with Straight PCB Pins)

OUR PART #:  NMJ4HFD2

1/4" mono jack, switched, with a full threaded nose and straight PCB pins.
Learn More
Sale Price: $0.63
List Price: $1.34
Save up to 55% when you order by quantity!
  • Buy 100: $0.60 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NMJ4HFD2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

1/4" mono jack, switched, with a full threaded nose and straight PCB pins.  Mounting nut included

Features:

  • Wide body and extremely durable contacts
  • Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Specifications:

  • Connector Type: Jack
  • Gender: female
  • Contact resistance: < 15 mOhm
  • Dielectric strength: 1 kVdc
  • Insulation resistance: >/= 1 GOhm @ 500 V dc
  • Rated current per contact: 3 A
    0.5 A @ 50 V (Switch contact)
  • Switching Contacts: 2
  • Switchable: Yes
  • Insertion force: < 20 N
  • Withdrawal force: < 10 N
  • Lifetime: >10000 mating cycles
  • Panel thickness: < 3 mm
  • Wiring: HorizontalPCB mount
  • Locking device: retention spring
  • Mounting direction: rear
  • Chassis shape: 11.2mm
  • Cap/Nut/Washer: PA 6.6 15% GR
  • Contacts: Nickel-Silver
  • Shell: Polyamide (PA6.6 15 % GR)
  • Standardcompliance: EIA RS 453, IEC 60603-11
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -25 °C to +70 °C
