Lectrosonics RCWVLS
Wired Remote Volume Control Wall Plate (for AM8, AM16/12, AM8/4 Mixers)

OUR PART #:  RCWVLS

Lectrosonics' RCW-VLS provides remote level attenuation for one or more mixer channels or can act as a master level attenuator.
Learn More
Our Price: $111.12
List Price: $113.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics RCWVLS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Lectrosonics' RCW-VLS provides remote level attenuation for one or more mixer channels or can act as a master level attenuator.  Several individual microphone channels on the AM8 can be controlled simultaneously if the wiper contacts from those channels are hard-wired together.  For the AM16/12 and AM8/4, the LecNet software is required to configure these devices for control of multiple channels

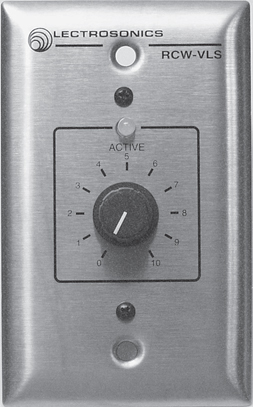

The RCW-VLS is a rotary control mounted on a circuit board and single-gang wall plate for use with the AM8, AM 8/4 or AM16/12 automatic mixers.  The rotary action is detented for a smooth, accurate feel.  The unit can be connected to individual channels in any combination or to the main output of the AM8.  Fully clockwise, no attenuation is applied.  Fully counter clockwise, the level is either completely attenuated or is reduced to -15dB, depending on how the jumper is set on the circuit board.

The RCW-VLS is a passive device so only one can be implemented per function, i.e. two RCW-VLS devices can not be  connected in parallel or daisy-chained to control the same channel/master level. Furthermore, if several programmable inputs (AM16/12 or AM8/4) or channels (AM8) are hard-wired to a single RCW-VLS, the amount of attenuation is reduced depending on the number of hardwired connections to the WIP connector.
1 Connection — 15 dB maximum attenuation
2 Connections — 12 dB maximum attenuation
3 Connections — 10 dB maximum attenuation
4 Connections — 9 dB maximum attenuation

The ACTIVE LED on the front of the RCW-VLS indicates that the mixer is on and that the RCW-VLS is properly connected. This LED will glow red when connected to an AM16/12* and green when connected to an AM8/4. A jumper is provided on the rear panel to adjust the amount of attenuation. There are two positions for the jumper: one is for full attenuation (30dB) and the other is for -15dB attenuation. When the remote potentiometer is fully clockwise in the "10" position, there is no attenuation applied to the mixer.

Features:

  • Connects directly to the Remote Level Control Port on the AM8 (DB15 connector) and the Programmable Input on the
    AM16/12 and AM8/4 mixers (DB25 connectors)
  • Can be configured to control master level, channel level, or multiple input channels on the AM8
  • Can be configured to control the programmable input volume on the AM16/12 and AM8/4 mixers
  • Jumper selectable attenuation range, 15dB or 30dB w/Mute
