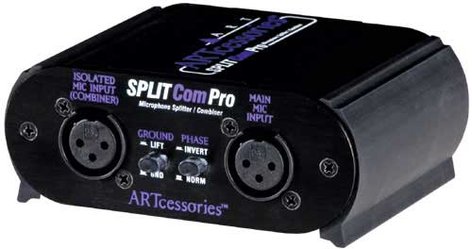

ART SPLITCom Pro
Microphone Splitter/Combiner with Ground Lift and Phase Reverse

OUR PART #:  SPLITCOM-PRO

Use the SPLITCom Pro to split or combine balanced low impedance microphone signals.
Learn More
Our Price: $35.00
List Price: $45.00
You save 22%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART SPLITCom Pro
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

Use the SPLITCom Pro to split or combine balanced low impedance microphone signals.

As a splitter:
The SPLITCom Pro provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The MAIN MIC OUTPUT passes phantom power from the main mixer to the MAIN MIC INPUT for use with condenser microphones. Phantom power is blocked from passing to the ISOLATED MIC OUTPUT.

As a combiner:
The SPLITCom Pro provides one output from two microphone inputs. The PHASE switch can be used to invert the relative phase of the ISOLATED MIC INPUT. Applications include dual micing of percussion instruments, choirs, and instrument amplifiers. Phantom power passes through each output to their respective input, (MAIN to MAIN, ISOLATED to ISOLATED), however phantom power is blocked from passing between the MAIN and ISOLATED signal paths. Only the audio passes between the MAIN and ISOLATED signal paths (it is present on all inputs and outputs).

ART SPLITComPro Features:

  • Low distortion with wide frequency response
  • Two function in one box - combines and/or splits
  • Phase invert switch for subtractive combining
  • Galvanic Isolation to block phantom-power between channel
  • Ground lift switch to reduce noise due to ground loops
