Quam TCH70B 70V Transformer, Low-Loss

OUR PART #: TCH70B MFR #: TCH70

Copied to clipboard

The TCH70 is a constant voltage line transformer with multi-tap outputs. Intended for use in an indoor environment. ...Read more

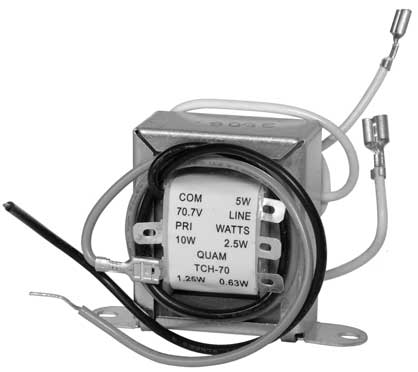

Quam TCH70B 70V Transformer, Low-Loss Image 1
Quam TCH70B 70V Transformer, Low-Loss
Our Price: $17.90

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The TCH70 is a constant voltage line transformer with multi-tap outputs.

Applications:

Intended for use in an indoor environment. Desired tap / common primary leads connected to the output of a constant voltage amplifier;secondary / common attached to a nominal 8Ω loudspeaker. Program Material: Signal tones, voice and music.

Specifications:

  • Primary Volts: 70.7V
  • Power Rating: 10W
  • Primary Taps (-3dB steps): 5
  • Secondary Load: 8Ω nominal
  • Frequency Response (Hz): 50Hz - 20Khz
  • Insertion Loss: 0.75dB
  • Primary Connection Common: 7” pre-cut
    • Taps: 7” red wire with field selectable, push-on connector
  • Secondary Connection: 7” lead with 0.205” female push on connector
  • Shipping Weight: 10oz
