RME I64-MADI-QS
Optional Card for ADI-8 QS, DMC842, Micstasy

OUR PART #  I64-MADI-QS

Our Price: $799.00
List Price: $899.00
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

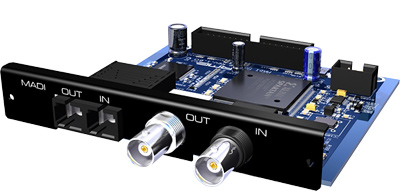

The I64 MADI Card provides the QS, DMC-842 or Micstasy with a 64-Channel MADI input and output. Coaxial and optical output operate in parallel to the AES/EBU and ADAT output, therefore deliver the same data. The I64 MADI Card features an optical as well as a coaxial MADI input. The input is switched automatically, according to where a valid input signal is detected. Full redundancy is ensured by the automatic input switching, immediately changing to the other input in case of loss of the input signal.

The MADI input will operate as an optional clock source (Clock section, OPTN), as signal source of the DA-converter and as thru-input. Since each unit uses only 8 channels, up to 56 channels can be passed through. This technique is used to serially cascade several units. Incoming MADI data is passed through unchanged, only one block of eight channels is replaced. This allows up to 8 devices to be connected serially. All 64 combined channels are available at the last device's MADI output.

With an installed I64 MADI Card these units can also be remote controlled via MADI. At the same time MIDI data are transmitted via MADI. When multiple devices are connected serially, the MADI I/O of each unit causes a delay of 3 samples. Therefore at the MADI output of the last device, the data of all upstreamed devices are delayed. The problem of this offset is solved by the function Delay Compensation.

RME I64-MADI-QS
Optional Card for ADI-8 QS, DMC842, Micstasy

OUR PART #  I64-MADI-QS

Product Information:

The I64 MADI Card provides the QS, DMC-842 or Micstasy with a 64-Channel MADI input and output. Coaxial and optical output operate in parallel to the AES/EBU and ADAT output, therefore deliver the same data. The I64 MADI Card features an optical as well as a coaxial MADI input. The input is switched automatically, according to where a valid input signal is detected. Full redundancy is ensured by the automatic input switching, immediately changing to the other input in case of loss of the input signal.

The MADI input will operate as an optional clock source (Clock section, OPTN), as signal source of the DA-converter and as thru-input. Since each unit uses only 8 channels, up to 56 channels can be passed through. This technique is used to serially cascade several units. Incoming MADI data is passed through unchanged, only one block of eight channels is replaced. This allows up to 8 devices to be connected serially. All 64 combined channels are available at the last device's MADI output.

With an installed I64 MADI Card these units can also be remote controlled via MADI. At the same time MIDI data are transmitted via MADI. When multiple devices are connected serially, the MADI I/O of each unit causes a delay of 3 samples. Therefore at the MADI output of the last device, the data of all upstreamed devices are delayed. The problem of this offset is solved by the function Delay Compensation.
