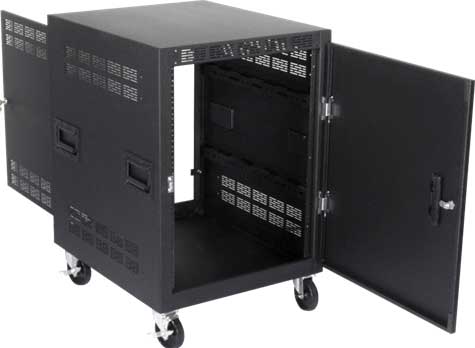

Atlas IED RX14-25SFD Mobile 14RU Equipment Rack with Casters and Side Handles

The RX14-25SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and includes heavy-duty casters. Equipped with a front pair of 11-ga., CRS adjustable mounting rails tapped 10-32 on standard E.I.A. 5/8"-5/8"-1/2" spacing.

Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

Cabinet is 25 1/2" deep and has a vertical panel space height of 24-5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1-1/2" x 3") in the rear base flange.

The unit's four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lbs. each - 700 lbs. total weight capacity.

Also included are vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1 1/2" from the front of the rail.

Features

• 16-ga. CRS frame manufactured to E.I.A. standards
• Four, 4" heavy-duty casters (175 lb cap/ea.)
• Includes 1 pair adjustable, 11-ga., front-to-rear mounting rails
• Mounting rail supports with slotted cut-outs for vertical wire management
• Perforated front and rear top flanges, sides and rear door provide ventilation and dissipation of equipment-generated heat
• Removable front and rear doors (right or left-hand hinging) are identically keyed for security and convenience
• RR14 optional rear mounting rails available
• Rubber-Padded steel grip "road handles" (2 per side)
• Standard rack includes base, top panel, side panels, casters, front and rear doors
• Three, wire isolation holes located on bottom of rear panel for external wire access
• Welded frame for long-lasting durability
• Dimensions (H x W x D): 33 9/16" x 22 5/16" x 25 1/2"
• Shipping Weight: 98 lbs
• Rack Spaces: 14
• Usable Depth: 24"
