Atlas Sound RCK-25
Caster Kit, for 200 & 500 Series

OUR PART #:  RCK25

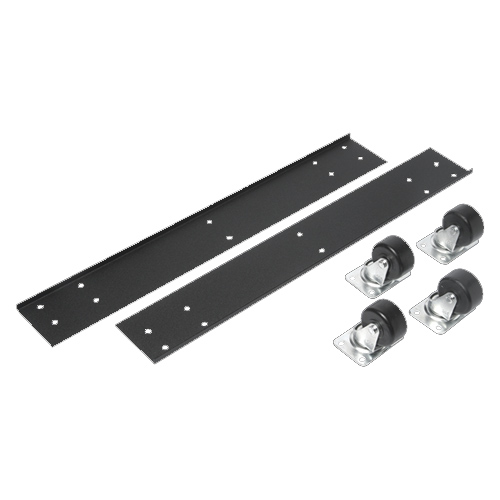

This caster kit is comprised of four, non-locking, 2 5/8" Dia. casters, and two, easy-to-install, mounting/support brackets.
Learn More
Our Price: $146.99
List Price: $182.99
You save 20%!
Write the first review.
Atlas Sound RCK-25
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This caster kit is comprised of four, non-locking, 2 5/8" Dia. casters, and two, easy-to-install, mounting/support brackets. This Model accommodates the 25.5" deep 200/500 Series cabinets.

The heavy-duty, 14-gauge CRS mounting/support brackets are 4" wide and are designed to be affixed beneath the cabinet’s bottom panel for front-to-back reinforcement. Brackets are .075" thick and feature two 1/2" downward flange on the inner edge, which provides additional structural support to the cabinet bottom.

The zinc-plated swivel casters, which have an overall height of 3.75", feature 2 5/8" hard rubber tread wheels. Supports a load capacity of up to 1000 lbs.

Brackets and casters mount directly to cabinets using supplied hardware. When in place, increases the cabinet’s overall height by 1.75". Brackets are finished in black.

Features:

  • 1000 Lb. Load Capacity Allows Maximum Equipment Installation
  • Caster Kits Allow Racks to be Ganged Together
  • Heavy-Duty Casters Enable "Easy-Roll" Movement
  • Provide Mobility For Atlas Sound 19" Wide x 25 1/2" deep cabinets

Specifications:

  • Height: 3 3/4" (9.525 cm)
  • Width: 4" (10.16 cm)
  • Shipping Weight: 13.75 lbs (6.24 kgs)
  • Mounts: 25" Deep 200 & 500 Series
