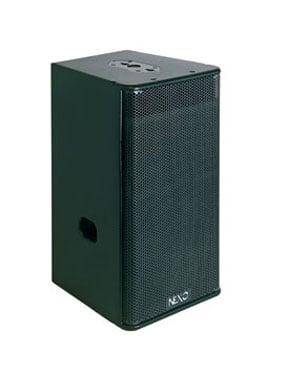

Nexo GEO S1210 12" 2-Way Loudspeaker Module

The compact 2-way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity - 1W @1m) from a single 12" loudspeaker and NEXO's proprietary Directivity Phase Device (DPD). While a narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1210s to radiate as coherent wavefronts, in either horizontally or vertically arrayed systems. GEO S1210’s coupled MF/HF pattern control is array-dependent, as designed by GEOSoft2 array software, and configured according to venue-specific geometry. Non-coupled MF/HF coverage configures at 80°or 120°.

The S1210 module displays exceptional MF-LF output (103dBSPL nominal sensitivity -1W @1m) from a single12" loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). Precise, intercabinet angle adjustments are optimized by integral flying system hardware while NEXO’s digital N242 TDcontroller maximizes S1210’s MF/HF coherency.

The S1210 is Recommended for:

• Stadiums/Arena/Auditorium Installations (Any Scale)
• High Traffic Walkways and Public Waiting Areas
• Foreground Playback for Nightclubs and discos
• Corporate AV and Presentation Systems
• Portable Entertainment and dJ Systems
• Small to Mid-Size Tour Systems
• Houses of Worship
