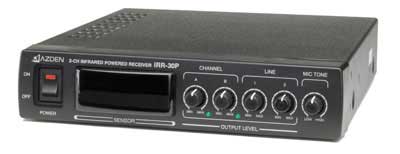

Azden IRR-30P
Infrared Powered Receiver, Dual Channel, with Power Supply


The heart of the Azden infrared system is the IRR-30P powered, dual-channel receiver.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The heart of the Azden infrared system is the IRR-30P powered, dual-channel receiver. It allows you to use and control the volume of 2 wireless microphones simultaneously, either for "team-teaching, or to use the handheld microphone for student pass-around. The receiver also has 2 stereo auxiliary inputs so that other line-level devices (CD players, MP3 players, VCRs, etc.) can be attached and played through the system. The teacher can also send the audio to a recorder or video camera, using the line-level output jack. For bigger rooms or odd-shaped rooms up to 3 additional external sensors can be attached. With all 4 of the ceiling speakers attached to the IRR-30P, sound is spread equally throughout the room, allowing all students to hear equally.


  • Sub-carrier frequencies: 2.06MHz & 2.56MHz
  • Type: Super heterodyne – crystal controlled
  • Modulation: FM
  • Signal-to-Noise: >75dB A weighted
  • Reception sensitivity: >25dBµV
  • Line Input impedance: 32k ohms ±15%
  • Line Output adjustment: – infinity to +10dBu
  • Audio Output: 5W x 4 @ 4 ohms
  • Power requirement: 15V DC @ 2.7A (use model BC-30)
  • Size: 8.03" W x 9.19" D x 1.73" H
  • Weight: 2.86lb
