Azden IR-CS
Wireless Infrared Classroom System, Complete with Ceiling Mount Speaker

OUR PART #:  IR-CS

Our Price: $865.69
List Price: $1,250.00
You save 31%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Azden IR-CS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Classroom Proven
For the past decade, probably no company has had more of their wireless microphone systems installed in classrooms across the country than Azden. Working with the engineering departments of the leading classroom amplification names, Azden has been at the forefront of the drive to improve the quality and reliability of sound available in classrooms. Azden has been selected by these companies because of their long experience in producing reliable RF and infrared products, not for the "stage" but for everyday applications, especially classrooms and conference rooms. Now, in addition to their continued partnerships, Azden is proud to introduce its own lineup of products, engineered specifically for the classroom.

The Advantages Of Infrared
Infrared wireless microphone systems are the best solution for classrooms. In today's RF saturated world a regular (VHF or UHF) microphone system risks interference from a variety of other devices and sources. Cell phones, radios, TV, PA systems, police and emergency service systems, etc., can all interfere with VHF and UHF, but not with IR. Furthermore, infrared is perfect for classroom audio. Unlike other systems, IR is short-range, cannot penetrate walls, and is line-of-sight. This means that a school can have as many classrooms as desired with individual audio systems, without fear of interference. Since the Azden system is dual-channel, the teacher can have one microphone and a second person can also have a microphone. In addition, since each classroom system is on the same pair of channels, teachers can go from room to room without having to switch microphones.

The Complete Classroom System

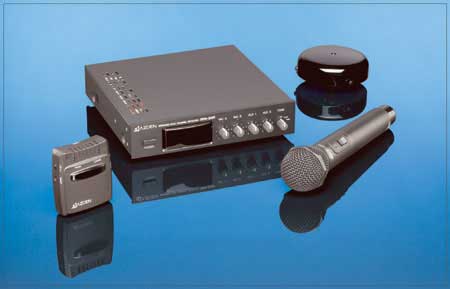

Although you can purchase components separately to customize your own system, Azden provides two complete systems (IR-CS and IR-WS) which include: an IR receiver with ample power for 4 ceiling or 4 wall-mounted speakers and a built-in sensor array (IRR-30P), a small, lightweight chest-worn microphone/transmitter (IRN-10), a pass-around handheld microphone/transmitter (IRH-15c), an external ceiling-mounted sensor (IRD-60), and 4 high-quality in-ceiling speakers (ACS 6.5) or 4 compact wall-mounted speakers (AWS-4.5). All you need to complete the installation is the wiring for the speakers and sensor.

Components

  • IRR-30P Receiver
    The heart of the Azden infrared system is the IRR-30P powered, dual-channel receiver. It allows you to use and control the volume of 2 wireless microphones simultaneously, either for "team-teaching", or to use the handheld microphone for student pass-around. The receiver also has 2 stereo auxiliary inputs so that other line-level devices (CD players, MP3 players, VCRs, etc) can be attached and played through the system. The teacher can also send the audio to a recorder or video camera, using the line-level output jack. For bigger rooms or odd-shaped rooms up to 3 additional external sensors can be attached. With all 4 of the ceiling speakers attached to the IRR-30P, sound is spread equally throughout the room, allowing all students to hear equally.
  • IRN-10 Microphone
    A lightweight, chest-worn microphone/transmitter, the IRN-10 comes with an adjustable lanyard. It is both a microphone and infrared transmitter which wirelessly "links" the teacher to the IRR-30P receiver. It has a specially designed internal microphone array which provides great sound pick-up. With two switchable channels, a teacher can go from classroom to classroom with the same microphone. With just two "AA" batteries (alkaline or rechargeable) the microphone can be used the entire school day without recharging or changing batteries.
  • IRH-15c Handheld Microphone
    The perfect handheld"pass-around" microphone for student participation, this dual channelmicrophone/transmitter, operates on the channel that the teacher is not using.It is powered by two "AA" batteries (alkaline or rechargebale) and iscompatible with all Azden infrared models.
    Both the IRN-10 and IRH-15c can recharge internal NiMH batteries when a BC-29 wall-charger is used. There's no need to remove the batteries to recharge.
  • IRD-60 Sensor
    In most classroom situations, a single well-positioned IRD-60 external IR sensor provides complete classroom coverage. Mounting is easy, and the sensor is connected to the IRR-30P receiver with standard coaxial wire.
  • ACS-6.5 In-Ceiling Speaker
    The ceiling speaker wasdesigned to provide optimum performances for the teacher's voice in additionto audio from other sources (CD/MP3 player, VCR, etc.). Each speaker featuresa sealed-back enclosure and 6.5" polypropylene midrange/woofer to producenatural bass response, while the coaxially-mounted 1" polycarbonate tweeterprovides superior high frequency response. Easily flush-mounted in anydrop-ceiling, four of these speakers can provide smooth, evenly distributedsound throughout the classroom. All students can enjoy enhanced audioequally.

IRR-30P Specifications

  • Sub-carrier Frequencies: 2.06MHz & 2.56MHz
  • Type: Super heterodyne - crystal controlled
  • Modulation: FM
  • Signal-to-Noise: >75dB A weighted
  • Reception Sensitivity: >25dBµV
  • Line Input Impedance: 32k ohms +/-15%
  • Line Output Adjustment: -infinity to +10dBu
  • Audio Output: 5W x 4 @ 4 ohms
  • Power Requirement: 15V DC @ 2.7A (use model BC-30)
  • Size (W x D x H): 8.03" x 9.19" x 1.73"
  • Weight: 2.86 lbs

IRH-15c Specifications

  • Sub-carrier frequencies: 2.06MHz & 2.56MHz switchable
  • Modulation: FM
  • Microphone element type: Uni-directional dynamic
  • Frequency Response: 50-8kHz ±3dB
  • Battery type: 2-“AA” alkaline( 1.5V x 2 ) or
  • 2-“AA” rechargeable Ni-MH (1.2V x 2 )
  • Battery life: > 6 hours w/alkaline batteries
  • Size: 9.65" x approx. 1.375"
  • Weight: 9.1oz w/alkaline batteries)

IRN-10 Specifications

  • Sub-carrier frequencies: 2.06MHz & 2.56MHz switchable
  • Modulation: FM
  • Microphone element type: Uni-directional electret x 2
  • Frequency response: 50-9kHz ±3dB
  • Ext Mic input impedance: 2.2k ohms Ext Mic input jack: 3.5mm
  • Ext. Mic Voltage/Current: 3.5VDC @ 1mA (to power electret mic element)
  • Mic gain adjustment: +6dB to approx. –10dB
  • Battery type: 2-"AA" Alkaline (1.5V x 2) or
  • 2-"AA" rechargeable Ni-MH (1.2V x 2)
  • Battery life: > 8hours w/alkaline batteries
  • Dimensions (H x W x D): 3.15" x 2.75" x 10.6"
  • Weight: 4.3 oz w/alkaline batteries

IRD-60 Specifications

  • Output: F Connector
  • Power: powered by receiver (24V @ 15mA)
  • Cable requirement: RG59 - 75 ohm coaxial
  • Size: 3.94" x 1.18"
  • Weight: 6.00oz w/mounting bracket
