Product Overview
Audio-Technica's advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channeled and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica's versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR-1/4" combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.

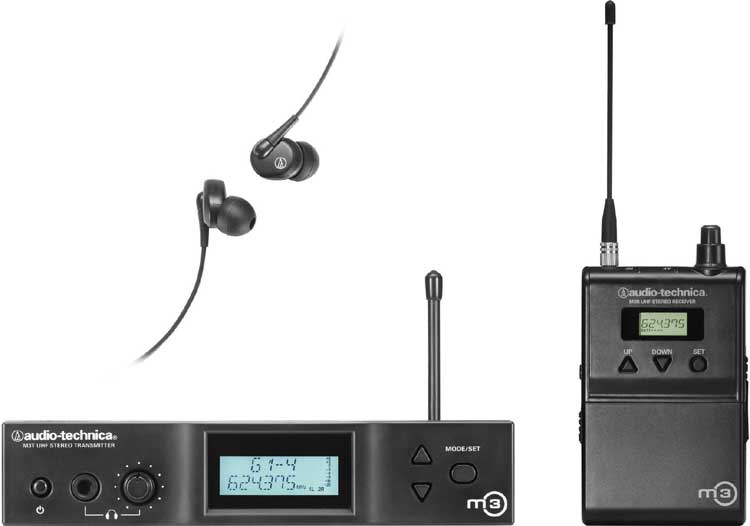

Includes:
- EP3 Headphones - In-ear dynamic headphones offer high-fidelity sound and excellent isolation
- M3T Stereo Transmitter - Wireless UHF transmitter (frequency-agile) offers LCD display and 1321 user-selectable frequencies
- M3R Stereo Receiver - Personal Mix Control in a lightweight body-pack with backlit LCD display
Audio-Technica M3L Features:
- High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume
- 1321 selectable UHF channels with automatic frequency scanning
- Up to 16 simultaneous systems per frequency band
- Three receiver modes: Personal Mix, stereo, and mono
- Personal Mix Control allows volume and mix control of two independent signals at the receiver
- LCD information display offers step-through menus for setting preferences
- XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
- Adjustable squelch eliminates annoying static
- Pilot tone protects against RF interference when transmitter is turned off
- Multi-level limiter (defeatable) helps protect hearing from sudden peaks
- Portable system is quick to load and set up
- Reduces on-stage audio clutter for better overall mix & less feedback
- Use any number of Stereo Receivers (with individual mixes) on the same frequency
- Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation
- Personal fit with 3 sizes of rubber eartips plus a near-conforming foam tip
- Selectable auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input
Overall System Specifications:
- Band L: 575.000 to 608.000 MHz, 1321 frequencies
- Minimum Frequency Step: 25kHz
- Modulation Mode: FM stereo
- Maximum Deviation: +/-40 kHz
- Dynamic Range: 90dB (typical), A-weighted
- Total Harmonic Distortion:
- Operating Range: 100m (300'), typical (open range environment with no interfering signals)
- Operating Temperature Range: -5° C (23° F) to +50° C (122° F) (Battery performance may be reduced at very low temperatures.)
- Frequency Response: 60Hz to 13kHz (+/-3dB)
- Simultaneous Use: 16 channel per band (maximum recommended); For assistance with multi-band operation or other frequency coordination issues please contact yourregional Audio-Technica customer service representative
Receiver Specifications:
- Receiving System: Double conversion superheterodyne
- RF Sensitivity: 20 dBuV (at 60dB S/N ratio, 50 ohms termination)
- Headphone Output Connector: 3.5mm TRS stereo phone jack
- Headphone Output Power: 65 mW (at 32 ohms)
- Antenna Input: SMA-Type, 50 ohms
- Aux Input Connector: 3.5mm TRS stereo phone jack
- Batteries: 2 x 1.5V AA (not included)
- Battery Life: 8 hours (alkaline); depending on battery type and use pattern
- Dimensions: 2.76" W x 0.98" D x 4.33" H
- Net Weight: 4.7 oz, without batteries
- Accessories Included: EP3 earphone; flexible antenna
Transmitter Specifications:
- RF Power Output: 10 mW/50 mW (switchable), 50 ohms; Limited to 10 mW within 863 MHz to 865 MHz (Following national regulations)
- Spurious Emissions: Following federal and national regulations
- Input Connections: XLRF-type/6.3mm stereo (1/4") combination connector; Pin 1 and sleeve: ground; Pin 2 and tip: Hot; Pin 3 and ring: Cold
- Maximum Input Level: XLRF-type-1/4" stereo, balanced: +26dBu; 1/4" mono, unbalanced: +26 dBu
- Loop Output Connector: XLRM-type connector: Pin 1: Ground; Pin 2: Hot; Pin3: Cold
- Power Requirement: 12-18V DC, 600 mA
- Headphone Output Connector: 1/4" TRS stereo phone jack
- Headphone Output Power: 120 mW at 32 ohms
- Antenna Connector: BNC, 50 ohms
- Dimensions: 8.3" W x 5.2" D x 1.7" H
- Net Weight: 32.8 oz, without accessories
- Accessories Included: AC adapter (country-dependant); rack mount adapters; flexible antenna
