Solid State Logic ALPHA-LINK-MADI-SX
MADI to AES/EBU & AD/DA Converter


Call for price!

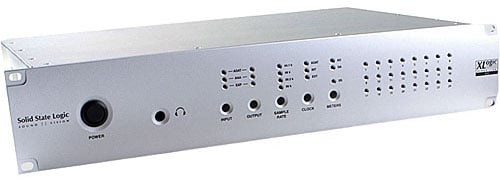

The Solid State Logic XLogic Alpha-Link MADI SX professional MADI to AES/EBU & AD DA converter is dependable and highly versatile. It features up to 64 channels of digital MADI I/O at 48kHz (or 32 channels at 96kHz), 12 stereo AES/EBU digital I/O, 24 analogue I/O and much more. The front panel includes a headphone connector, a metering section for the analog inputs and outputs, an AD/DA selection button, mode indicator LEDs, and 24 tri-color level LEDs. The Alpha Link MADI SX delivers high quality MADI Interface to AES/EBU based conversion solution.


  • MIDI input and output
  • Connects to Mixpander via Expansion Bus port
  • Word/SuperClock input and output
  • Analog-to-digital and digital-to-analog converter with twenty-four analog inputs and outputs at up to 96kHz
  • Twelve stereo AES/EBU digital inputs and outputs
  • Fifty-six or sixty-four MADI digital inputs and outputs at up to 48kHz, twenty-eight or thirty-two at up to 96kHz
  • Video Sync input functionality available at the WordClock input. The video sync signal can be converted to Wordclock internally and transmitted via the Wordclock output
  • All input and output channels can be used simultaneously in any configuration
  • Comprehensive input/output routing and mode selection matrix
  • Analog input/output metering via twenty-four tri-colour LEDs
