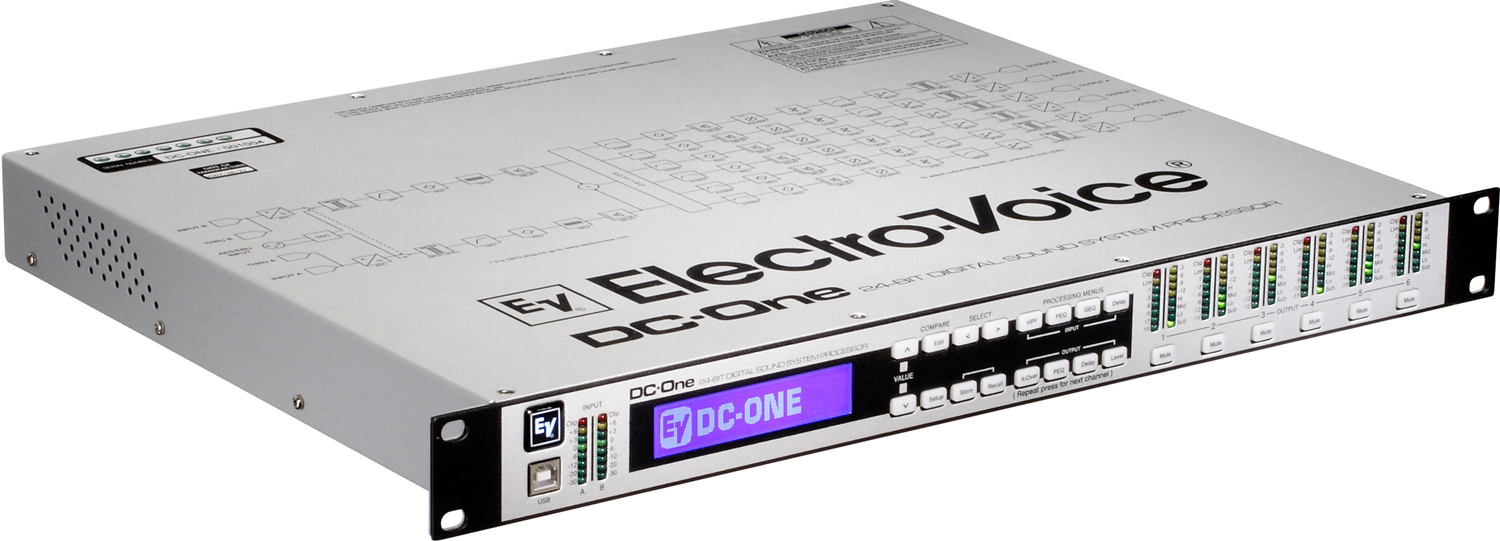

Electro-Voice DC-ONE
2 In x 6 Out Digital Speaker Processor


The Electro-Voice DC-One is a 2-in, 6-out digital signal processor for loudspeaker management and optimization.
Learn More
Our Price: $980.00
List Price: $1,020.00
Write the first review.
Electro-Voice DC-ONE
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Electro-Voice DC-One is a 2-in, 6-out digital signal processor for loudspeaker management and optimization. Built on EV’s DSP heritage, DC-One is the next generation of EV signal processing, proven in thousands of installations and live applications around the world including the Olympics, the FIFA World Cup, Live 8, and Live Earth. Throughout the years, EV has set industry standards for superior processing solutions featuring outstanding dynamic range, legendary reliability, and powerful DSP—options normally associated with units costing many, many times more. World class floating point processing ensures a total sonic match with all existing EV loudspeaker presets from existing and future processing platforms and also allows expansion of the DC-One processing features with new releases. DC-One packages this level of performance and flexibility into a system that balances ease of use with sophisticated functionality.

Electro-Voice DC-ONE Features:

  • Analog or AES/EBU Inputs
  • Switchable -6 dB pre-A/D converter pad
  • 24-bit AD/DA conversion
  • 32-bit floating point internal processing
  • 111 dB dynamic range
  • Six predefined operation configurations
  • Contact closure interface for remote preset recall
  • 60 factory presets, 20 user presets
  • Unique edit/compare mode for audible parameter adjustment
  • Highly-customizable security settingsom settings for many EV loudspeakers

Electro-Voice DC-ONE Specifications:

  • Analog Inputs: 2 XLR (electronically balanced), 2 XLR THRU OUT (Electronically balanced)
  • Digital Inputs: 1 XLR AES/EBU (2 ch.)
  • Nominal Input Voltage: 1.23V/+4dBu
  • Maximum Input Voltage: 8.7V/+21dBu (without -6dB Analog Pad Engaged)
  • Nominal Output Voltage: 1.23V/+4dBu
  • Maximum Output Voltage: 8.7V/+21dBu
  • Input Impedance (balanced): 10k ohms
  • Output Impedance (balanced): 50 ohms
  • A/D Conversion: 24-bit Delta-Sigma
  • D/A Conversion: 24-bit Delta-Sigma
  • Sample Rate: 48kHz
  • Data Format: 24-bit
  • Internal Processing: 32-bit Floating Point
  • Frequency Response: 10Hz-22kHz (+/-0.5dB)
  • Dynamic Range: 111 dB (unweighted, band limited 22Hz-22kHz)
  • THD+N: <0.01% (band limited 22Hz-22kHz)
  • Control Protocol: Front Panel USB Connector
  • Mains Voltage: 100-240 VAC
  • Power Consumption: 25W
  • Electronics Type: Processor
  • Weight: 10.14 lbs
  • Dimensions (HxWxD): 1.75" x 19" x 14"
