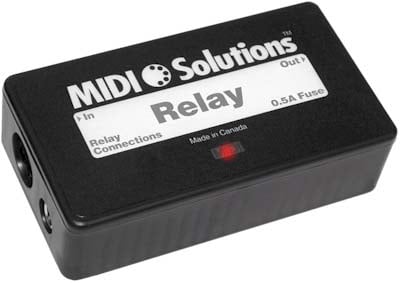

MIDI Solutions RELAY MIDI Controlled Relay Switch

The MIDI Solutions Relay contains a relay that can be programmed to open or close in response to MIDI events.

Event types are programmable and include:

• Note
• Control Change
• Program Change
• System Exclusive

A fast reed relay is used for a response time of less than 2ms. Relay contact is rated at 500 mA. Contacts are made available via connection to the tip and sleeve of a 1/4" mono phone jack.

The Relay is programmed by sending it MIDI System Exclusive messages. This can be done easily with the Processors Programming Tools software. Once programmed, its settings are retained even after power is removed. The Relay can be reprogrammed with new settings as often as needed.

The Relay is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products. A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

Specifications

• Weight: 4.3 oz.
• Dimensions 4-3/16" x 2-3/16" x 1-3/32"
