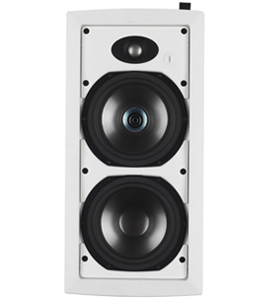

Tannoy IW62TDC
In Wall Speaker, IW62TDC

OUR PART #  IW62TDC

Call for info!


The iw62 TDC is a full bandwidth in wall speaker system, using a 165mm (6.50") Tannoy Dual Concentric™ point source, constant directivity drive unit with an additional 165mm (6.50") bass driver and 25mm (1.00") Tannoy SuperTweeter™. Designed primarily for installation into standard stud partition wall systems, it may also be used in cavity wall installations constructed with standard thickness drywall as well as a wide range of other wall construction types with a surface thickness of up to 25mm (1.00").

Ideally suited to applications requiring the combination of intelligibility, premium sonic quality for music and speech reinforcement and exceptional reliability, the high power handling iw62 TDC is particularly suited to custom AV installations and business music systems.

Features:

  • Extended frequency response and very low distortion
  • Wide, controlled constant directivity dispersion for optimum coverage
  • Does not suffer from massive loss of energy in the vertical place at crossover caused by two way discrete designs
  • UV/weather-resistant UL94V-0 ABS construction for structural integrity
  • Dynamic high frequency protection
  • Eight-way self-aligning clamp mounting system
  • Ferrofluid cooled neodymium high frequency driver
  • Five year warranty

Specifications

Performance:

  • System Type: In-wall loudspeaker
  • Frequency Response (1): 70Hz - 51kHz (+/-3dB)
  • Low Frequency Alignment (2): 34Hz (-6dB)
  • Recommended Amplifier Power: 20 - 210W @ 8 Ohms
  • Power Handling: 150W (average), 210W (program), 420W (peak)
  • Sensitivity 2.38V @ 1m: 92 dB (Anechoic), 95 dB (Half space)
  • Maximum SPL @ 1 m: 112 dB (average), 118 dB (peak)
  • Impedance: 8 ohms

Drive Unit:

  • Dispersion: 90 degrees
  • Driver Complement: SuperTweeter™: 25mm (1.00") titanium dome, DualConcentric™: 165mm (6.50"), Bass driver: 165mm (6.50")

Optional THP 60 Transformer:

  • Maximum SPL (4): 107 dB
  • Wattage Tap Selections: 60, 30, 15, and 7W

Construction:

  • Finish: White paintable
  • Connectors: Gold-plated spring terminals
  • Dimensions (H x W): Front Baffle: 473.5 x 227mm (18.64 x 7.39"), Maximum wall thickness: 25mm (1")
  • Cut-out Dimensions (H x W): 426.10 x 187.60mm (16.76 x 7.39")
  • Rec. in-wall Mounting Volume: 30 litres, (1.1 cu.ft.)
  • Mounting Depth: 99mm, (3.89")
  • Weight (each): 5kg (11lbs)
  • Accessories: Pre-installation ring, back can with 60W transformer

Tannoy IW62TDC
In Wall Speaker, IW62TDC

OUR PART #  IW62TDC

Product Information:

The iw62 TDC is a full bandwidth in wall speaker system, using a 165mm (6.50") Tannoy Dual Concentric™ point source, constant directivity drive unit with an additional 165mm (6.50") bass driver and 25mm (1.00") Tannoy SuperTweeter™. Designed primarily for installation into standard stud partition wall systems, it may also be used in cavity wall installations constructed with standard thickness drywall as well as a wide range of other wall construction types with a surface thickness of up to 25mm (1.00").

Ideally suited to applications requiring the combination of intelligibility, premium sonic quality for music and speech reinforcement and exceptional reliability, the high power handling iw62 TDC is particularly suited to custom AV installations and business music systems.

Features:

  • Extended frequency response and very low distortion
  • Wide, controlled constant directivity dispersion for optimum coverage
  • Does not suffer from massive loss of energy in the vertical place at crossover caused by two way discrete designs
  • UV/weather-resistant UL94V-0 ABS construction for structural integrity
  • Dynamic high frequency protection
  • Eight-way self-aligning clamp mounting system
  • Ferrofluid cooled neodymium high frequency driver
  • Five year warranty

Specifications

Performance:

  • System Type: In-wall loudspeaker
  • Frequency Response (1): 70Hz - 51kHz (+/-3dB)
  • Low Frequency Alignment (2): 34Hz (-6dB)
  • Recommended Amplifier Power: 20 - 210W @ 8 Ohms
  • Power Handling: 150W (average), 210W (program), 420W (peak)
  • Sensitivity 2.38V @ 1m: 92 dB (Anechoic), 95 dB (Half space)
  • Maximum SPL @ 1 m: 112 dB (average), 118 dB (peak)
  • Impedance: 8 ohms

Drive Unit:

  • Dispersion: 90 degrees
  • Driver Complement: SuperTweeter™: 25mm (1.00") titanium dome, DualConcentric™: 165mm (6.50"), Bass driver: 165mm (6.50")

Optional THP 60 Transformer:

  • Maximum SPL (4): 107 dB
  • Wattage Tap Selections: 60, 30, 15, and 7W

Construction:

  • Finish: White paintable
  • Connectors: Gold-plated spring terminals
  • Dimensions (H x W): Front Baffle: 473.5 x 227mm (18.64 x 7.39"), Maximum wall thickness: 25mm (1")
  • Cut-out Dimensions (H x W): 426.10 x 187.60mm (16.76 x 7.39")
  • Rec. in-wall Mounting Volume: 30 litres, (1.1 cu.ft.)
  • Mounting Depth: 99mm, (3.89")
  • Weight (each): 5kg (11lbs)
  • Accessories: Pre-installation ring, back can with 60W transformer
