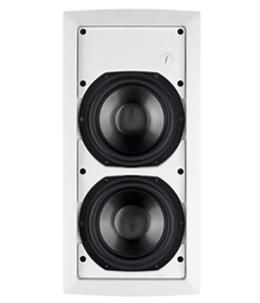

Tannoy IW62TS
Subwoofer

OUR PART #  IW62TS

Call for info!


The iw62TS is a high performance in-wall subwoofer. Designed to augment the low frequency output of an in wall system installation. It uses the same construction and mechanical installation method to ensure it is a perfect match, both acoustically and visually, to the full range units.

With a continuous power output rated at 200W RMS, this in-wall subwoofer is capable of delivering impressive results in large residential and commercial applications; such as small entertainment venues, restaurants, bars, public buildings, board rooms, AV installations and business music systems.

Features:

  • Unique application flexibility – easy configurationpossible for active, passive, mono, or stereo modes
  • Designed to partner the Tannoy iw6 DS, iw6 TDC andiw62 TDC full-range in-wall loudspeaker products
  • The two 6.5" bass drivers in the iw62 TS delivereffective low frequency reinforcement from 29Hz – 110 Hz in passive modecontinuous power handling 200W RMS
  • 2nd order low passcrossover in passive mode – determined by external controller in active mode
  • Simple and effective 8 clamp mounting system –self-aligning for easy installation and removal
  • 4 spring loaded gold terminals – cut links to drivein stereo mode
  • Ideally suited to larger installations where higherpower premium performance in multi-room distrubuted audio and AV systems,small venues, restaurants, bars, business music systems and a vast array ofother public building installations
  • Grille and baffle can be painted to suit any décor

Specifications:

Performance:

  • System Type: In-wall subwoofer
  • Frequency Response - 6dB: 29Hz-110Hz passive(determined by controller in active mode)
  • Low Frequency Alignment - 6dB: 29Hz passive(determined by controller in active mode)
  • Recommended Amplifier Power: 100 - 400W
  • Power Handling: 200W (average), 400W (program), 800W(peak)
  • Sensitivity 2.83 Volts @ 1 meter: Half Space: 94dB
  • Maximum SPL@ 1 m: 117 dB (average), 123 dB (peak)
  • Impedance: 8 ohms (stereo), 4 ohms (mono)
  • Driver Complement: 2 x 165mm (6.50" ) drive units with long throw multifiber paper pulp cones

Crossover:

  • Passive: 110 Hz
  • Active: determined by controller

Construction:

  • Finish: White – paintable
  • Dimensions (H x W): Front Baffle: 473.50 x 227mm(18.68 x 8.94"), Mounting Panel Thickness: 25mm Maximum
  • Cut-out Dimensions (H x W): 426.1 x 187.6mm, (16.78 x7.39")
  • Rec. in-wall Mounting Volume: 30 litres, (1.1 cu.ft.)
  • Mounting Depth: 95.50mm, (3.76")
  • Weight (each): 6.5kg, (16.3lbs)
  • Accessories: Pre-installation ring, Back can

Click to download

Tannoy IW62TS
Subwoofer

OUR PART #  IW62TS

Product Information:

The iw62TS is a high performance in-wall subwoofer. Designed to augment the low frequency output of an in wall system installation. It uses the same construction and mechanical installation method to ensure it is a perfect match, both acoustically and visually, to the full range units.

With a continuous power output rated at 200W RMS, this in-wall subwoofer is capable of delivering impressive results in large residential and commercial applications; such as small entertainment venues, restaurants, bars, public buildings, board rooms, AV installations and business music systems.

Features:

  • Unique application flexibility – easy configurationpossible for active, passive, mono, or stereo modes
  • Designed to partner the Tannoy iw6 DS, iw6 TDC andiw62 TDC full-range in-wall loudspeaker products
  • The two 6.5" bass drivers in the iw62 TS delivereffective low frequency reinforcement from 29Hz – 110 Hz in passive modecontinuous power handling 200W RMS
  • 2nd order low passcrossover in passive mode – determined by external controller in active mode
  • Simple and effective 8 clamp mounting system –self-aligning for easy installation and removal
  • 4 spring loaded gold terminals – cut links to drivein stereo mode
  • Ideally suited to larger installations where higherpower premium performance in multi-room distrubuted audio and AV systems,small venues, restaurants, bars, business music systems and a vast array ofother public building installations
  • Grille and baffle can be painted to suit any décor

Specifications:

Performance:

  • System Type: In-wall subwoofer
  • Frequency Response - 6dB: 29Hz-110Hz passive(determined by controller in active mode)
  • Low Frequency Alignment - 6dB: 29Hz passive(determined by controller in active mode)
  • Recommended Amplifier Power: 100 - 400W
  • Power Handling: 200W (average), 400W (program), 800W(peak)
  • Sensitivity 2.83 Volts @ 1 meter: Half Space: 94dB
  • Maximum SPL@ 1 m: 117 dB (average), 123 dB (peak)
  • Impedance: 8 ohms (stereo), 4 ohms (mono)
  • Driver Complement: 2 x 165mm (6.50" ) drive units with long throw multifiber paper pulp cones

Crossover:

  • Passive: 110 Hz
  • Active: determined by controller

Construction:

  • Finish: White – paintable
  • Dimensions (H x W): Front Baffle: 473.50 x 227mm(18.68 x 8.94"), Mounting Panel Thickness: 25mm Maximum
  • Cut-out Dimensions (H x W): 426.1 x 187.6mm, (16.78 x7.39")
  • Rec. in-wall Mounting Volume: 30 litres, (1.1 cu.ft.)
  • Mounting Depth: 95.50mm, (3.76")
  • Weight (each): 6.5kg, (16.3lbs)
  • Accessories: Pre-installation ring, Back can

Click to download
