Allen & Heath ZED-436 32-Channel Analog USB Mixer

OUR PART #: ZED-436 MFR #: AH-ZED436

Copied to clipboard

The ZED-436 is one of Allen & Heath's ZED 4 analog bus mixers which are intended for larger bands, houses of worship, theaters or AV applications. ...Read more

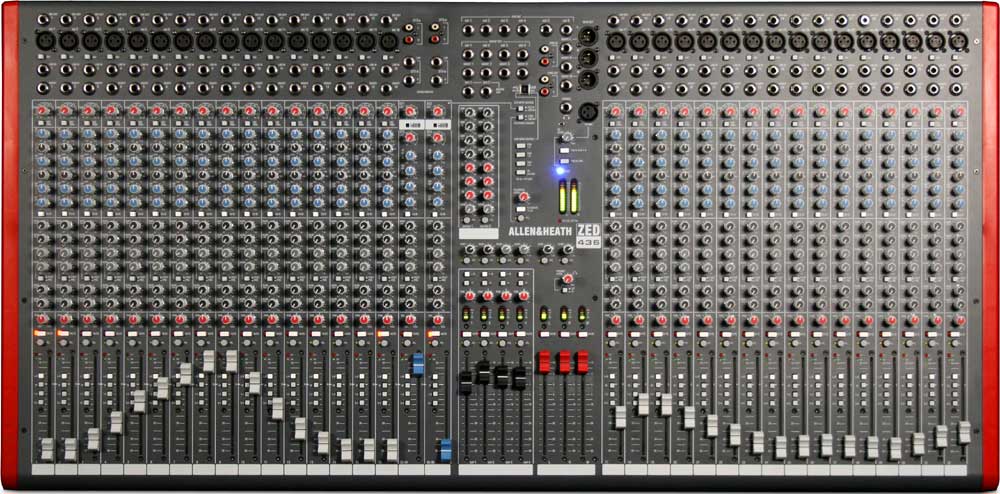

Allen & Heath ZED-436 32-Channel Analog USB Mixer Image 1
Allen & Heath ZED-436 32-Channel Analog USB Mixer Image 2
Allen & Heath ZED-436 32-Channel Analog USB Mixer Image 3
Allen & Heath ZED-436 32-Channel Analog USB Mixer Image 4
Allen & Heath ZED-436 32-Channel Analog USB Mixer

Call for info!

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The ZED-436 is one of Allen & Heath's ZED 4 analog bus mixers which are intended for larger bands, houses of worship, theaters or AV applications. This analog mixer is also useful with PA rental companies looking for a good return on investment with minimal maintenance.

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Now you just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it!

Based on the proven pre-amps from the hugely successful PA series, ZED-436 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level.

Features

  • 32 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters

Specifications

  • Inputs:
    • Mono channel (XLR) Input +6 to -63dBu for nominal (+17dBu in max)
    • Mono channel Line Input (Jack socket) +10 to -26dBu (+30dBu maximum)
    • Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum)
    • Stereo Input (Jack sockets) 0dBu nominal (control =Off to+10dB)
    • Stereo Input (phono sockets) 0dBu nominal (control = Off to+10dB)
    • 2 Track Input (phono sockets) 0dBu nominal +21dBu maximum
  • Outputs:
    • L, R & Mono Outputs (XLR) +4dBu nominal. +27dBu maximum
    • L, R & M Insert (TRS Jack socket) -2dBu nominal +21dBu maximum
    • Group Outputs (Jack sockets) +4dBu nominal. +27dBu maximum
    • Group Insert (TRS Jack socket) -2dBu nominal +21dBu maximum
    • Aux Outputs (Jack sockets) -2dBu nominal +21dBu maximum (Bal Option +4)
    • Matrix Outputs (TRS Jack socket) -2dBu nominal. +21dBu maximum. (Bal Option +4)
    • 2 Track Output (phono sockets) 0dBu nominal. +21dBu maximum.
    • Direct Out (TRS Jack socket) 0dBu nominal.+21dBu maximum.
  • Frequency Response:
    • Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 20Hz to 20kHz
    • Line in to Mix L/R Out 0dB gain +0.5/-1dB 10Hz to 30kHz
    • Stereo in to Mix L/R Out +0.5/-1dB 10Hz to 30kHz
  • THD+N:
    • Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004%
    • Mic into Mix L/R Out, 30dB gain 1kHz 0.014%
    • Line in to Mix L/R Out 0dB gain 0dBu 1kHz 0.005%
    • Stereo in to Mix L/R Out 0dB gain+10dBu 1kHz 0.003%
  • Headroom:
    • Analog Headroom from nominal (0Vu) 21dB
    • USB in & out headroom from nominal (0Vu) 14dB
    • USB Audio CODEC (Coder/Decoder)
    • USBAudio In/Out USB 1.1 compliant 16-bit
    • Sample Rate 32, 44.1 or 48kHz
  • Noise:
    • Mix Noise, LR out, 16 channels routed, Ref +4dBu, 22-22kHz -90dB (-86dBu)
    • Mix Noise, LR out, 24 channels routed, Ref +4dBu, 22-22kHz -89dB (-85dBu)
    • Mix Noise, LR out, 32 channels routed, Ref +4dBu, 22-22kHz -88dB (-84dBu)
    • Mic Pre EIN @ max gain 150R input Z22-22kHz -127dBu
  • Dimensions (HxWxD): 5.08" x 44.7" x 22.1"
  • Weight: 48.5 lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
