Ensemble Designs BE-15
SDI to Analog Converter with Frame Sync/Genlock

OUR PART #:  BE-15

BrightEye 15 is a digital to analog video converter with a timeable output. It's perfect for feeding analog switchers and routers, where signal timing is required.
Learn More
Our Price: $1,045.00
List Price: $1,100.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-15
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

BrightEye 15 is a digital to analog video converter with a timeable output. It's perfect for feeding analog switchers and routers, where signal timing is required.

BrightEye 15 has an SD SDI video input and a reference input. The input signal is converted to analog composite and synchronized (genlocked) to the reference signal. The analog composite output is fully timed with respect to the reference, including ScH phase.

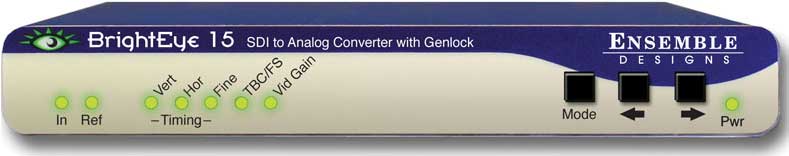

Basic controls are provided on the front panel. With BrightEye Mac or PC software, you can control video proc functions; Gain, Chroma, Pedestal, and Hue. The vertical interval can be passed or blanked.

Features

  • Feed analog switchers and routers
  • SD SDI input
  • Analog Video Output
  • Timing Control for output

Serial Digital Input

  • Number: One
  • Signal Type: 270 Mb/s SD Serial Digital (SMPTE 259M)
  • Impedance: 75 ohms
  • Return Loss: >15dB
  • Max Cable Length: 300 meters
  • Automatic Input Cable Equalization

Reference Input

  • Number: One
  • Type: 1VP-p composite video, PAL or NTSC
  • Impedance: 75 ohms
  • Return Loss: >40dB

Analog Video Output

  • Number: Two
  • Type: Composite PAL or NTSC (follows input)
  • Return Loss: >40dB
  • Output: DC <100mV

SDI to Analog Performance

  • Bit Resolution: 12 bit output reconstruction, 8x oversampling
  • Signal to Noise: >65dB
  • Timing Window: Infinite
  • Output: ScH Phase matches reference
  • Timing Resolution: Adjustable to within 1 degree of subcarrier
  • Frequency Response: +/-0.1dB, 0 to 5.5 MHz
  • K Factor: <1%
  • ScH Phase Error: <+/-2 degrees
  • Differential Phase: <1 degree
  • Differential Gain: <1%

General Specifications

  • Size (W x H x D): 5.625" x 0.8" x 5.5" including connectors
  • Power: 12 volts, 3 watts (100-230 VAC modular power supply not included)
