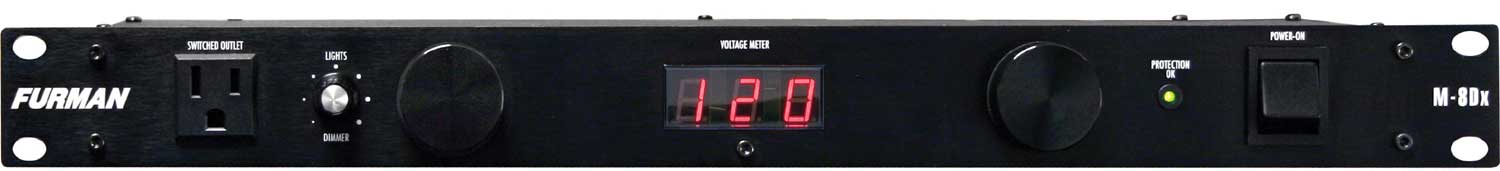

Furman M-8Dx
15A Power Conditioner with 9 Outlets, Digital Meter, Pull-Out Lights


The Furman M-8Dx Merit Series Power Conditioner is a great low-cost AC power solution for any rack mount system.
Learn More
Our Price: $159.00
List Price: $199.95
You save 20%!
Write the first review.
Furman M-8Dx
In Stock

Related Products

The Furman M-8Dx Merit Series Power Conditioner is a great low-cost AC power solution for any rack mount system.  Install an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load.  The M-8Dx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places.  A dimmer knob lets you adjust the lamp brightness to just the right level.  The M-8Dx also features a bright red, three-digit LED voltmeter that displays incoming voltage.

Furman M-8Dx Features:

  • Noise Filtration -AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
  • Surge Protection -Spike & surge protection ensures equipment stays safe and your power stays clean
  • 9 Total Outlets -8 rear panel outlets and 1 front panel outlet
  • Digital Voltmeter -Digital voltmeter display incoming line voltage
  • 15 Amp Rating -15 amp rating, with circuit breaker
  • "Protection OK"Indicator -Front panel indicator LED lets you know that your equipment is being protected
  • Wall Wart Spacing Indicator -Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters
  • Front Panel Pull-out Lights -Two retractable incandescent light fixtures with dimmer control for convenient rack illumination

Furman M-8Dx Applications:

  • Instrument Rigs - Furman's standard level surge/spike protection defends your gear from thespikes and surges that are so common at gigs and practice spots. With Furman's standard level RFI/EMI filtration, you'll get a quieter tone without pops,crackles, and the local radio station coming out of your amp.
  • Recording - With Furman's standard level RFI/EMI filtration you'll lower the noise floor caused by the dirty AC power coming into your console or DAW.  Furman's standard level surge and spike protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and nine total outlets, it's enough to power your whole home studio.
  • DJ Equipment -Bars, clubs and other event venues have some of the worst power out there - from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman's standard level protection and filtration keeps the bad stuff out.
  • Pro Audio - Furman's standard level protection and RFI/EMI filtration keeps your equipment safe and sounding clean.

Furman M-8Dx Specifications:

  • Maximum Output Current: 15 amps
  • Line Cord: 6', captive, 14 AWG, with 3-conductor Edison plug
  • Lamps: Two 120V incandescent bulbs, 4 watts each
  • Operating Voltage: 120VAC 60Hz
  • Spike Protection Mode: Line to neutral
  • Energy Dissipation: 170 joules
  • Peak Impulse Current: 12,000 amps
  • Maximum Continuous Operating Voltage: 130 VAC RMS
  • Let Through Voltage (@ 125 amps, 8/20uS waveform): 400 volts
  • Noise Attenuation: Transverse mode: Greater than 26dB, 200kHz to 10MHz
  • Dimensions: 1.75" H x 19" W x 7.5" D
  • Weight: 5.8 lbs
  • Warranty: Merit Series units are protected by a limited three year warranty covering defects in material and workmanship
