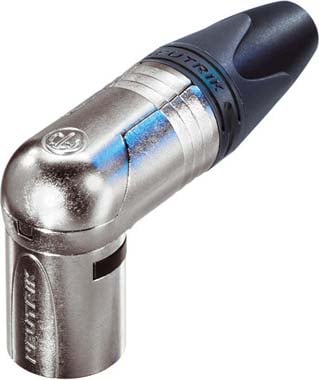

Neutrik NC4MRX
RX Series 4-Pin XLR Male Right Angle Connector (Nickel Housing, Silver Contacts)

OUR PART #:  NC4MRX

The RX Series is the right-angle version of the XX cable connector series.
Learn More
Sale Price: $6.48
List Price: $14.88
Save up to 58% when you order by quantity!
  • Buy 100: $6.25 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC4MRX
Qty:
Similar Products

The RX Series is the right-angle version of the XX cable connector series.  The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features:

  • Extra slim right-angle connector
  • 5 selectable cable outlet positions
  • Male connector with improved locking recess without "window", morestringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makesassembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bendingstresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design

Specifications:

  • Connector Type: XLR
  • Gender: male
  • Capacitancebetween contacts: </= 7 pF
  • Contact resistance: </= 3 mOhm
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GOhm (initial)
  • Insulation resistance: > 1 GOhm (after damp heat test)
  • Rated current per contact: 10 A
  • Rated voltage: 50 V
  • Cable O.D.: 3.5-8 mm
  • Insertion force: =20 N
  • Withdrawal force: =20 N
  • Lifetime: >1000 mating cycles
  • Wire size: max.1.5 mm²
  • Wire size: max.16 AWG
  • Wiring: Soldercontacts
  • Locking device: latchlock
  • Boot: Polyurethane
  • Bushing: Polyamide(PA 6 15% GR)
  • Contact plating: 2 µmAg
  • Contacts: Brass
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zincdiecast
  • Shell: Zinc diecast
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
