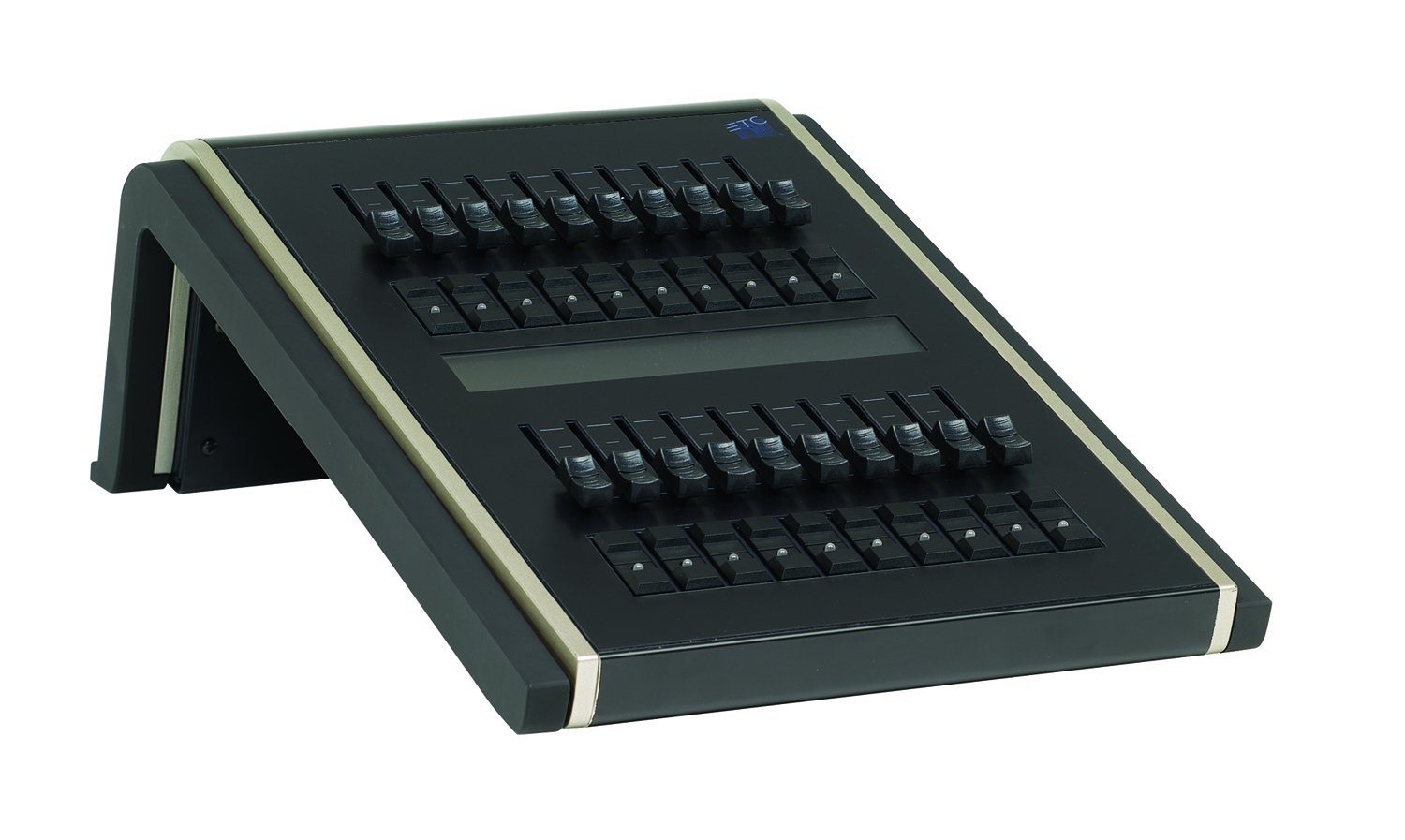

ETC/Elec Theatre Controls FADW 2 x 10
Universal Fader Wing Control Console

OUR PART #:  FADW-2X10

Compact and compatible with ETC's Universal Fader control consoles the FADW 2 x 10 Fader Wing offers flexible playback options at an economical price.
Learn More
Our Price: $1,365.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls FADW 2 x 10
Qty:
Usually ships in 7-14 business days.

Similar Products

Compact and compatible with ETC's Universal Fader control consoles the FADW 2 x 10 Fader Wing offers flexible playback options at an economical price. Whether you need more physical faders for your Eos® or Gio® console, banks and banks of submasters for your Ion® console, or more space-conscious solutions for master playbacks on your Congo® jr console, the Universal Fader Wings are for you.

Universal Fader Wings are available in two variants: This model is the 2 x 10 Fader Wing which is half the width of the Ion and Congo jr consoles and offers 20 faders with an LCD for labeling the fader content; the 2 x 20 Fader Wing is the same width as the Ion and Congo jr consoles and offers 40 faders and two LCD displays. The connection may be made via USB cable, or the wing(s) may be physically connected to either side of an Ion or Congo jr console.

NOTES:

  • Universal Fader Wings are not compatible with ETCnomad on an Apple computer.
  • 1x20 Fader Wings do not ship with a power supply

The Universal Fader Wings are ideal for broadcast and studio applications where quick manual lighting is required and for school and worship venues where less technically skilled staff need to be able to easily change lighting, without keystroke-command knowledge. The Wings are also recommended for use whenever Congo jr is serving as a backup console to a Congo, and fader access is paramount. Modularity allows the user to employ the Wings during show setup or programming and then remove them conveniently when they are no longer required for playback.

NOTES - Universal Fader Wings are compatible with Eos, Gio, Ion and Congo jr using the following guidelines:

  • With an Eos or Gio console or Eos RPU , up to three wings may be attached, for a total of up to 120 external faders: 3 x 2 x10 Wings or 3 x 2 x 20 Wings, or any combination of up to three wings total.
  • With an Ion console, up to six wings may be attached, for a total of up to 240 external faders: 6 x 2 x10 Wings or 6 x 2 x 20 Wings, or any combination of up to six wings total.
  • With a Congo, Congo jr console or Congo Light Server, any combination of wings may be attached to achieve a total of up to 80 master playback faders.

ETC Fader Wing Applications:

  • Any situation requiring additional fader controlfrom:
    • An Eos Ti, Gio, Ion or Congo consoles
    • An Eos/Ion Remote Processor Unit
    • A Cobalt Light Server
    • A Net3 Remote Video Interface oR RVI3 Remote Video Interface
    • A PC operating ETCnomad™ for Eos or Cobalt
    • An ETCnomad Puck™

ETC Fader Wing Includes:

  • Universal 12V power supply with Wings (except the 1x20 Fader Wing models)
  • USB A-to-B cable
  • Documentation

ETC Fader Wing Features:

  • Two rows of 10 faders, two rows of 20 faders or one row of 20 faders
  • Integral LCD display(s) on the Wings only, for identification and labeling functions
  • USB connectivity to console, RPU/Light Server, RVI or PC

ETC Fader Wing Specifications:

  • Physical:
    • 20/40 45mm faders
    • 40/80 keys for various functions
    • Integral LCD display(s) for identification and labeling (Wings only)
  • Interfaces:
    • USB Multipurpose bus
  • Compatibility:
    • In Eos Family control systems:
    • Eos
    • Eos Ti
    • Gio
    • Ion
    • Eos Remote Processor Units (Eos RPU3)
    • Ion Remote Processor Units (Ion RPU)
    • Remote Video Interface (RVI)
    • Remote Video Interface 3 (RVI3)
    • ETCnomad (PC)
  • In Cobalt Family control systems:
    • Congo jr console
    • Cobalt 20/10
    • Congo jr
    • Cobalt Light Server
    • Net3 Remote Video Interface (RVI)
    • ETCnomad (PC)
  • Electrical:
    • When rigidly connected to Ion or Congo jr, unit powered by console
    • When connected with external USB:
      • 2 x 20 = 10-watt power consumption maximum
      • 2 x 10 = 5-watt power consumption maximum
      • 8 to 28Vdc external power supply (included)
      • 1 x 20 = 50-200mA at 5V
  • Physical:
    • Dimensions: (H x W x D):
      • FADW 2 x 10: 5.25 x 9.45 x 15.93 in. / 133 x 240 x 405mm
      • FADW 2 x 20: 5.25 x 17.89 x 15.93 in. / 133 x 454 x 405mm
      • FADW 1 x 20: 3.15 x 17.64 x 7.34 in. / 80 x 448 x 186mm
    • Weights:
      • FADW 2 x 10: 6.5 lbs / 2.95Kgs
      • FADW 2 x 20: 12 lbs / 5.5Kgs
      • FADW 1 x 20: 5.67 lbs / 2.57Kgs
    • Shipping Weights:
      • FADW 2 x 10: 8 lbs / 3.65Kgs
      • FADW 2 x 20: 15 lbs / 7Kgs
      • FADW 1 x 20: 7.2 lbs / 3.26Kgs
