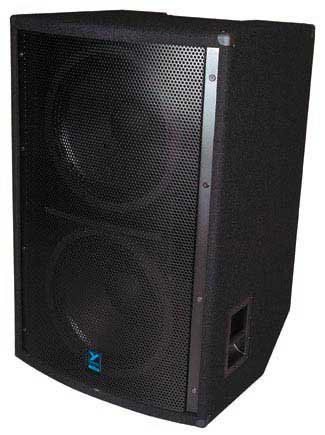

Yorkville LS1004
Elite Series Dual 18" Subwoofer,1400 Watts @ 4 Ohms, Black Ozite Carpet Finish

OUR PART #  LS1004-YORKVILLE

Our Price: $1,099.00
List Price: $1,499.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The LS1004 has a bass reflex design and is suitable for touring or fixed installations. The cabinets are constructed of 15mm 11-ply Baltic Birch with heavy internal bracing for reduced resonance and better durability. All enclosures are covered in a black carpet covering and incorporate metal corner protectors, rugged curved anti-resonant metal grilles, and 1/4" or Speakon™ input connectors. Additionally, the Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables.

Yorkville’s élite series loudspeaker systems are the result of years of research, pushing the limits of modern state-of-the-art sound reinforcement technology. Engineered for the serious pro audio user, élite systems are among the most advanced, most versatile and most efficient high powered portable P.A. boxes available.  The majority of the élite range feature seamless driver interaction through sophisticated high-slope passive networks and ingenious component protection schemes. Rugged jackplates are inset and include a combination of both Speakon™ and 1/4" phone jack inputs.

Features:

  • 5600 Watt 2x18-inch Subwoofer (2800 Watts Program)
  • Max SPL 139dB Peak (136dB Continuous)
  • Bass Reflex Cabinet Design
  • 45Hz – 180Hz Frequency Response
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Solid 5/8-inch (15mm) Birch Plywood Construction
  • Made in Canada

Specifications:

  • System Type Bass Reflex Subwoofer
  • Active or Passive Passive
  • Program Power (Watts) 2800 Watts (5400 Peak / 1400 Continuous)
  • Nominal Impedance (Ohms) 4
  • Sensitivity (dB @1Watt/1m) 102
  • Max SPL (dB) 139dB Peak (136dB Continuous)
  • Frequency Response (Hz +/- 3db) 40 - 300
  • Driver Configuration 2x18-inch Ceramic Magnet 4-inch Voicecoil
  • Inputs - 1/4" Jacks 2
  • Inputs - Speakon 4-pin 2
  • Other Controls / Features Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables.
  • Corners Black Steel
  • Wheels 2 Rear Tilt
  • Bar Handles 2 Top, 2 Side
  • Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
  • Grille Heavy gauge perforated metal
  • Covering / Finish Black Ozite (Carpet)
  • Dimensions (DWH xbackW, inches) 23.5 x 28.3 x 43.5
  • Dimensions (DWH xbackW, cm) 59.7 x 71.9 x 110.5
  • Weight (lbs/kg) 163 / 74

* Specifications subject to change without notice
