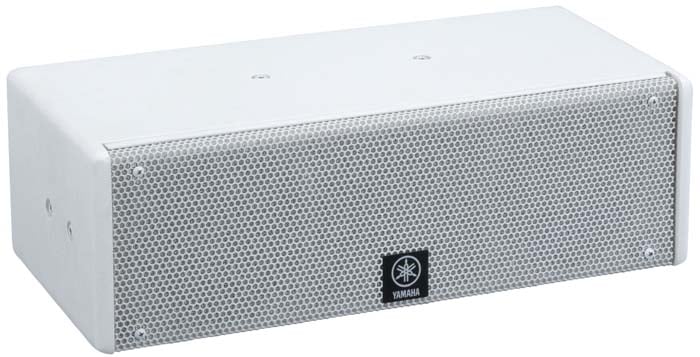

Product Overview
The Installation Series provides a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.
Selected Features:
- Ideal for medium to large-scale installations.
- Uniform phase response throughout the entire series.
- A wide selection of dispersion characteristics for long-range, short range, and long/short range use.
- Standard U-bracket and array-frame hardware available for maximum installation convenience and efficiency.
- Switchable single-amp and bi-amp drive modes.
- Certified measurement and prediction EASE data. Including polar plots, CAD files, and DXF data.
- Constructed of high strength premium 11-ply / 5/8 inch-thick Finland Birch enclosures on most models.
- Grilles have 63% transparency for better clarity of sound.
- Speakers include a barrier-strip and NL4 Neutrik with parallel connections.
- Horns are manufactured from fiber-reinforced plastic to minimize unwanted resonance.
- The entire line of speakers incorporates rotatable horns, when space consideration dictates the speakers orientation.
- High frequency drivers feature one-piece titanium diaphragms formed to precision tolerances for high performance, endurance and superior sonic quality.
Specifications:
- Frequency Response: 85 Hz-18k Hz
- Frequency Range: 65 Hz-19k Hz
- Nominal Coverage: 90° x 60°
- Power Rating: 100 W (EIA)
- Nominal Impedance: 8 ohms
- Sensitivity (1 W @ 1 m): 91 dB SPL
- Calculated Peak SPL: 115 dB
- Calculated Continuous SPL: 109 dB
- LF Component: 2 x 5" Woofer, 1" Voice Coil
- HF Component: Rotatable Constant Directivity Horn, 1" exit, 1" Voice Coil Compression Driver
- Dimensions (h x w x d): 5.8 x 18.0 x 8.7 in
- Weight: 17 lbs
- Shape: Rectangular
- Material: 1/2inch (12mm), 9-ply Finland Birch
- Finish: White
- Grill: 14 gauge powder coated perforated steel backed with acoustically transparent reticulated foam
- Connectors: Barrier Strip
- Suspension Points: 6x M8, 2x M6
- U-Bracket: UB2205(W)
