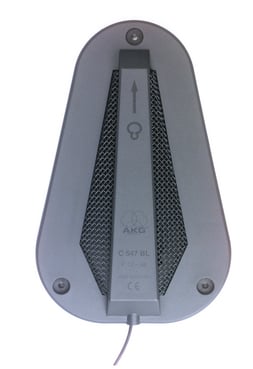

HyperCard Boundary Mic w/case


The microphone shall be a boundary layer condenser type with a hypercardioid pattern.
Learn More
Our Price: $399.00
List Price: $499.00
You save 20%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The microphone shall be a boundary layer condenser type with a hypercardioid pattern. The size shall fall within the rectangular envelope given by: 185 x 120 x 19 mm (7.3 x 4.7 x 0.8 in.). The microphone’s sensitivity shall be no lower than 8.5 mV/Pa, and the microphone shall produce no more than 1 % total harmonic distortion (THD) at an acoustical operating level of 133 dB. The equivalent noise floor shall be no greater than 22 dB-A. The microphone shall operate on phantom powering over the range from 9 to 52 volts dc. The microphone shall be rugged enough to withstand the weight of a normal person who steps on it. Net/shipping weight: 160/420 g (5.6/14.8 oz.)

* "Non-crush" case

* Inconspicuous

* Hypercardioid polar pattern

* Easy to repaint

Hypercardioid, studio-quality boundary microphone with rugged, "non-crush" case and switchable bass-cut filter for reducing footfall noise, ideal for tough on-stage assignments. Other benefits include optimum acoustic properties, high directivity, and neutral sound. Having the same frequency response, the C 547 BL can be combined with the CK 47 with excellent results.

Primarily designed for use in places of worship, theaters, and conferencing, the C 547 BL is also a good choice for miking kick drums and other instruments.

C 547 BL-T: Identical to C 547 BL, except with no windscreen. For tabletop use.

Polar pattern hypercardioid

Frequency range 30 to 18,000 Hz

Sensitivity 8.5 mV/Pa (-42 dBV)

Max. SPL 133 dB (for 1% THD)

Equivalent noise level 22 dB-A

Signal/noise ratio (A-weighted) 72 dB

Bass filter 12 dB/octave at 150 Hz

Impedance 400 ohms

Recommended load impedance >1000 ohms

Powering <2 mA

Connector 3-pin XLR

Cable 3 m (10 ft.)

Finish matte dark gray

Dimensions 185 x 120 x 19 mm / 7.3 x 4.7 x 0.8 in.

Net weight 160 g / 5.6 oz.

Shipping weight 420 g / 14.8 oz.
