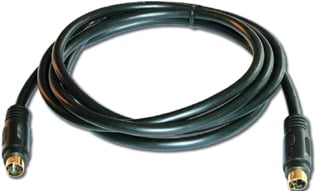

Kramer C-SM/SM-35
4-Pin S-Video Male to Male Cable, 35 ft.

OUR PART #:  C-SM/SM-35

Kramer SM/SM series cables are high performance s-Video (Y/C) cables with molded 4-pin mini DIN connectors at each end.
Learn More
Our Price: $10.40
List Price: $13.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer C-SM/SM-35
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer SM/SM series cables are high performance s-Video (Y/C) cables with molded 4-pin mini DIN connectors at each end. They carry the luminance and color signals on separate cables for superior picture quality than composite signals.

  • Quality Construction - Passes Luminance (Y) and Chrominance (C) signals over a high quality 26 AWG dual coax cable terminated with 4-pin mini DIN connectors.
  • High Quality Connectors - Gold plated connectors for corrosion resistance and best possible connection.
  • Cable Specs - See Kramer BC-2X for detailed cable specs.
  • Varied Selection of Lengths - Available in 3, 6, 10, 15, 25, 35, 50, 75, and 100 ft lengths.
  • Quality Construction - Passes Luminance (Y) and Chrominance (C) signals over a high quality 26 AWG dual coax cable terminated with 4-pin mini DIN connectors.
  • High Quality Connectors - Gold plated connectors for corrosion resistance and best possible connection.
  • Cable Specs - See Kramer BC-2X for detailed cable specs.
  • Varied Selection of Lengths - Available in 3, 6, 10, 15, 25, 35, 50, 75, and 100 ft lengths (0.9 to 30 meters).

Specifications:

CONSTRUCTION:

  • Coax Center Conductor: 26 AWG 7/34 tinned copper
  • Coax Jacket Colors: Yellow, white
  • Dielectric: Foam polyethylene
  • Draine Wire: 24 AWG 7/32 tinned copper
  • Outer Jacket Color: Dark gray w/white lettering
  • Outer Jacket: PVC
  • Shield:
    (A) 90% spiral 38 AWG tinned copper
    (B) aluminum foil/mylar 25% overlap rate

DIAMETERS:

  • Center Conductor: 0.018 inches, 0.474mm
  • Dielectric: 0.176 inches, 1.95mm
  • Individual Coax: 0.102 inches, 2.6mm
  • Outside Diameter: 0.244 inches, 6.2mm

ELECTRICAL:

  • Attenuation (dB/100 ft.):
    -0.5 dB @ 1MHz
    -1.2 dB @ 5 MHz
    -1.8 dB @ 10 MHz
    -4.4 dB @ 50 MHz
    -6.7 dB @ 100 MHz
  • Capacitance: 17.3pF per foot, 53.1pF per meter
  • DC Resistance: 45 Ohm per 1000ft, 148 Ohm per km
  • Impedance: 75 Ohm
  • Temperature: 68° to 167° fahrenheit, - 20° to 75° celsius
  • Velocity of Propogation: 76%

REGULATORY:

  • CSA: C(UL) CL2
  • UL: CL2
