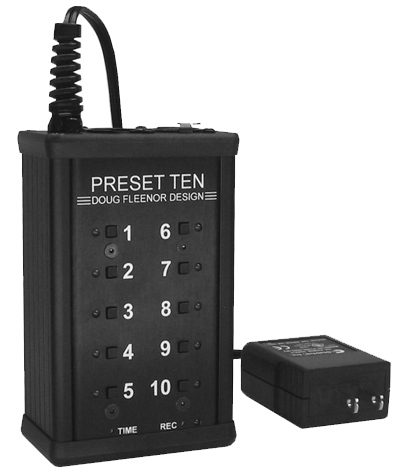

Doug Fleenor Designs PRE10-P
Console, DMX512, Portable, 10 Preset


The Preset 10 Portable [PRE10P] can act as a backup for any DMX512 lighting console or as a stand-alone DMX512 preset console.
Learn More
Our Price: $487.62
List Price: $602.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Doug Fleenor Designs PRE10-P
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Preset 10 Portable [PRE10P] can act as a backup for any DMX512 lighting console or as a stand-alone DMX512 preset console. The PRE10P is a DMX512 playback device that can take up to ten snapshots from a DMX console and play them back at the press of a button. Fade times can be set from 0 to 999 seconds (default is 2 seconds).

Each PRE10P can work in conjunction with a lighting console, automatically switching between preset and console control. When the console generates DMX, the PRE10P goes off-line, and the console operates normally. Upon loss of DMX from the console, the PRE10P either returns to its previous preset or holds the last look (jumper selectable).

Doug Fleenor Designs PRE10-P Console Features:

  • Store and recall up to 10 different preset lightingconfigurations
  • Adjustable crossfade time - 0-999 seconds
  • Easy-to-read status LED's

Doug Fleenor Designs PRE10-P Console Specifications:

  • Connectors: Input: 5 pin male, gold plated contacts(3 pin connectors optional)
  • Output: 5 pin female, gold plated contacts (3 pinconnectors optional)
  • Connecter pin out:
      -   1 - DMX512 common
     -  2 - DMX512 data -
      -  3 - DMX512 data +
     -  4 - Passed Through
      -  5 - Passed Through
  • Input/Output circuit: ESD protected EIA-485transceiver (LT1785)
  • Indicators:
      -  Ten green preset indicator LEDs
      -  One redSignal / Record LED
  • User controls:
      -  Ten preset push buttons
      - One recessed record push button
      -  One recessed fadetime push button
  • Power input: Universal power supply 100 - 240VAC,50/60 hertz, 5 watts
  • Color: Black anodized with white nomenclature
  • Size and weight: Chassis 5.3"l X 3.2"w X 1.8"h, 12ounces
  • Power supply 2.2"l X 1.9"w X 1.0"h, 5 ounces
