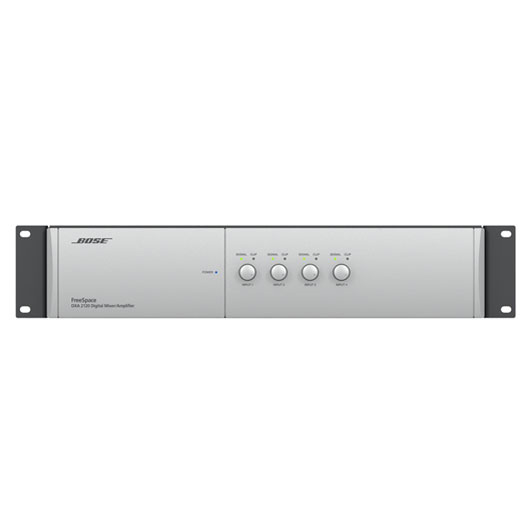

Bose DXA2120
Freespace Mixer/Amp

OUR PART #:  DXA2120

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing...
Learn More

Call for price!

Similar Products

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.

The DXA 2120 digital mixer/amplifier can be used in both low- and high-impedance systems. Each of the two output channels delivers 120 watts at 4 ohms or 100 watts for 70/100-volt applications. An auxiliary output provides a line level signal for system expansion. The DXA 2120 digital mixer/amplifier has six inputs – four  mic/line inputs, one page input and one direct input that overrides all other sources when a signal is detected. The four mic/line inputs connect to sources via 3-pin Euroblock connectors or dual RCA jacks. Three operating modes provide greater flexibility for installed music or speech applications:

Mixer Mode – Each input can be routed to every output simultaneously. Volume for each input can be controlled independently, or a master volume can control both outputs simultaneously.

Dual Mono Select Mode – Two input sources are available for each output channel. Volume control and source selection are available in each zone.

Stereo Select Mode – Two selectable stereo sources can be played in stereo in a single output zone. Volume control and source selection are available in the zone.

The auxiliary output can be used with all three modes of operation. Two user interfaces, volume control and volume control with A/B select, are available for operation from remote locations.

Bose DXA2120 Features:

  • Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
  • Two powered outputs that can operate at high or low impedance: 2 x 120 Wat 4 ohms or 2 x 100 W at 70/100V
  • Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode
  • Easy setup and control via onboard controls – no computer needed
  • DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
  • Opti-voice® paging provides a smooth transition between music and announcements
  • 24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems

Bose DXA2120 Specifications:

  • Power Rating:
    • Amplifier Power: 2 x 120 W @ 4 ?, 2 x 100 W @ 70/100 V
  • Audio Performance Specifications:
    • Frequency Response: 40 Hz - 16 kHz (+0/-3 dB)
    • Signal-to-Noise Ratio: 75 dB (below rated power, A-weighted)
    • THD: =0.5 % (at full rated power)
    • Channel Separation (Crosstalk): =-60 dBV (below rated power, 1 kHz)
    • Dynamic Range: 80 dB
  • Integrated DSP:
    • A/D and D/A Converters: 24-bit
    • Sample Rate: 44.1 kHz
  • Audio Inputs:
    • Inputs:
      • Mic/Line Inputs: 4 balanced
      • Line Inputs: 4 unbalanced
      • Page Inputs: 1unbalanced
      • Direct Inputs: 1 balanced
    • Connectors, Input:
      • Mic/Line Inputs: 3-pinEuroblock
      • Line Inputs: Dual RCA (summed to mono)
      • Page Inputs: 4-pin Euroblock
      • Direct Inputs: 3-pinEuroblock
    • Input Range:
      • Mic/Line Inputs: 20 - 20kHz
      • Line Inputs: 20 - 20kHz
      • Page Inputs: 20 -20kHz
      • Direct Inputs: 20 - 20kHz
    • Input Impedance:
      • Mic/LineInputs:
        • Mic 2kOhm
        • Line 25 kOhm
      • Line Inputs: 10 kOhm
      • Page Inputs: 400 Ohm
      • Direct Inputs: 18 kOhm
    • Maximum Input Level:
      • Mic/LineInputs:
        • Mic-20dBu
        • Line 10 dBu
      • Line Inputs: +10 dBu
      • Page Inputs: -30 dBu
      • Direct Inputs: +8 dBu
    • Equivalent Input Noise:
      • Mic/Line Inputs: -122 dB(A-weighted/ 20-20kHz)
      • Line Inputs: N/A
      • Page Inputs: -122 dB (A-weighted/ 20-20kHz)
      • Direct Inputs:N/A
  • Audio Outputs:
    • Outputs:
      • Amplifier Outputs: 2
      • Auxillary Output: 1
    • Connectors, Output:
      • Amplifier Outputs: 5-terminalinverted Euroblock
      • Auxillary Output: 3-pin Euroblock
    • Nominal Load:
      • AmplifierOutputs:
        • 50 Ohms @70V
        • 100 Ohms @ 100V
      • Auxillary Output: N/A
    • Output Impedance:
      • Amplifier Outputs: 4 Ohm
      • Auxillary Output: 400 Ohm
    • Maximum Output Level:
      • Amplifier Outputs: N/A
      • Auxillary Output: 2.2 dBV
    • Indicators and Controls:
      • LED Status Indicators:
        • Blue LED: Power
        • Green LED: Signal Present
        • Red LED: Clip
  • Electrical Specifications:
    • Mains Voltage:
      • 100 V version: 100 VAC; 50/60Hz
      • 120 V/220-240 V version: 120 V/220-240 VAC; 50/60 Hz
    • AC Power Consumption:
      • Idle: 39 W
      • Active: 350 W
    • Maximum Inrush Current:
      • 23.2 A @ 230 V ~ 50Hz
      • 33.2 A @ 120 V ~ 60 Hz
    • Overload Protection: T6.3AL/250 V (100 V and 120 V) or T3.15AL/250 V(220-240 V)
    • DC Backup Power/Connector:  +24 V (±1 %) Connector 2-terminal barrierstrip
    • Input Voltage Level: +24 V
    • Minimum Input Power: 50 W
    • Maximum Input Power: 150 W
  • Physical:
    • Dimensions (HxWxD): 3.5" x 16.5" x 13.8" (90 mm x 420 mm x 349 mm)
    • Net Weight: 32 lb (14.4 kg)
    • Shipping Weight: 40 lb (18.1 kg)
    • Operating Temperature: 32 °F - 104 °F (0 °C - 40 °C)
    • Storage Temperature: -40 °F - 158 °F (-40 °C - 70 °C)
    • Humidity:  40 % - 90 % relative humidity
  • General:
    • Communication Port: RS-232 serial port
