Cable Up M3-MF3-50 50 ft 1/8" TRS Male to 1/8" TRS Female Balanced Headphone Extension Cable

OUR PART #: M3-MF3-50

Copied to clipboard

Cable Up's Industrial audio cables feature a high-performance, yet rugged combination of low capacitance quality cable. ...Read more

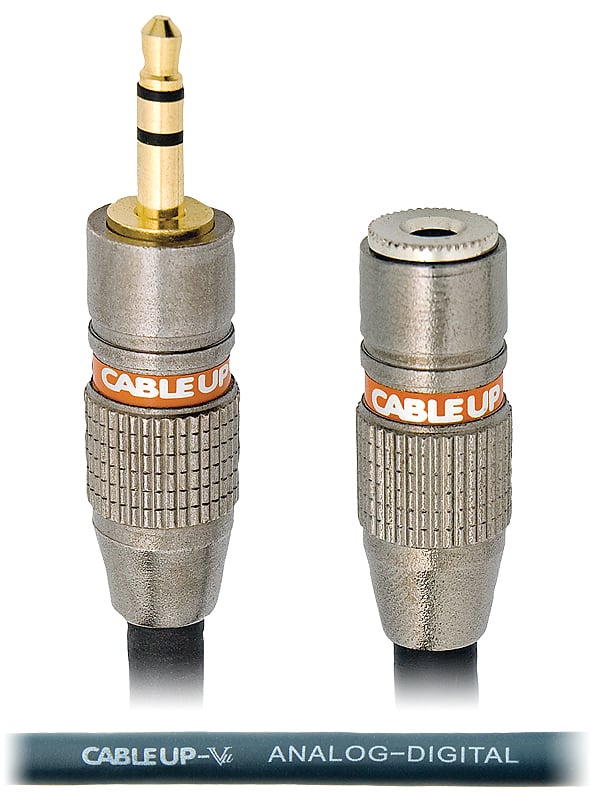

Cable Up M3-MF3-50 50 Ft 1/8" TRS Male To 1/8" TRS Female Balanced Headphone Extension Cable Image 1
Cable Up M3-MF3-50 50 Ft 1/8" TRS Male To 1/8" TRS Female Balanced Headphone Extension Cable
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Cable Up's Industrial audio cables feature a high-performance, yet rugged combination of low capacitance quality cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty against defects in material or workmanship.

Cable Up M3-MF3-50 Specifications:

  • Cable:
    • Number of Conductors: 2
    • Conductors: 24AWG
    • Stranding: 7 x 0.2 mm
    • Conductor Type: Bare Copper
    • Insulation Material: HDPE
    • Thickness: 0.6 mm
    • Core O.D.: 1.3 mm
    • Shield Type: 8x16x0.12mm + 7x0.2mm
    • Shield Style: Braid
    • Shield Material: Tinned Copper
    • Jacket Type: PVC
    • Jacket Thickness: 1.3 mm
    • Total O.D.: 5.5 mm
  • Connectors:
    • 1/8" TRS male plug
      • Cable Up Part #: 18TRSM-C
      • Plate gold tip, ring, and sleeve
    • 1/8" TRS female jack
    • Cable Up Part #: 18TRSF-C
