Lectrosonics ALP620
Log Periodic Dipole Array (LPDA) Antenna, Shark Fin, Skeletal for Decreased Wind Loading

OUR PART #:  ALP620

The ALP Series antennas are a Log Periodic Dipole Array (LPDA) design that provides a useful directional pattern over a broad frequency bandwidth.
Learn More
Our Price: $364.29
List Price: $370.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics ALP620
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ALP Series antennas are a Log Periodic Dipole Array (LPDA) design that provides a useful directional pattern over a broad frequency bandwidth. Most "gain antennas" (those designs with a directional pattern) are limited in bandwidth. This makes them awkward for use in multi-channel wireless systems and with frequency agile wireless systems.

With VSWR below 2:1 from 450 to 850 MHz, the broad bandwidth of the ALP Series covers the entire UHF band used for Lectrosonics wireless microphone and IFB systems, yet still provides theh directional pattern needed to cover long distances.

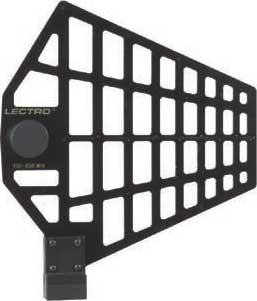

All ALP Series antennas are constructed of 1/8" FR4 fiberglass board and are extremely rugged. The ALP620 is best suited for portable applications including temporary setups for field shoots. Additionally, the perforated design of the ALP620 makes it highly resistant to wind loading. None of the antennas in the ALP Series are intended to be left outdoors indefinitely. A sturdy aluminum housing protects the 50 ohm BNC connector.

Specifications

  • Gain: +7dBi (isotropic); +4dBd (over dipole)
  • Range: 450-850 MHz
  • Connector: 50 ohm BNC
  • Dimensions: 13.5" L x 12.25" W; 10.75" x 11" T
