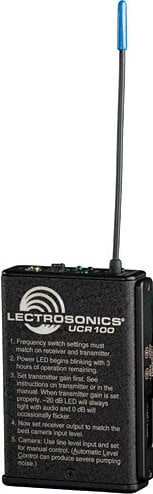

Lectrosonics UCR100
Mini Analog Belt-Pack Microphone Receiver

OUR PART #:  UCR100

Lectrosonics' 100 system was designed to operate with the new generation of DV camcorders.
Learn More
Selected Model Price: $722.96
List Price: $860.00
Save up to 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics UCR100
Select a Model: (shipping times are approximate)
Qty:

Similar Products

Lectrosonics' 100 system was designed to operate with the new generation of DV camcorders. The system offers 256 selectable frequencies over a 25.6 MHz band to avoid interference from local RF sources. The UCR100 receiver is highly sensitive and the matching transmitters provide a full 100mW of output power. The result is exceptional operating range and freedom from drop outs.

Features:

  • Ideal for compact DV camcorders
  • 256 selectable UHF frequencies
  • High sensitivity for extended range
  • Dual-band compandor
  • Ultra rugged tempered alloy antenna
  • 9 Volt battery powered
  • Machined aluminum construction
  • Electrostatic powder coated and anodized finish

Specifications:

  • Operating frequencies: 537.6 to 608 MHz, 614 to 767.9 MHz (Blocks 21 through 29)
  • Number of frequencies: 256 (transmitter covers one frequency block)
  • Channel spacing: 100 kHz
  • Frequency control: Crystal Controlled Phase Locked Loop
  • Sensitivity: 1 uV (20 dB SINAD)
  • Signal/Noise ratio: 105 dB (overall system)
  • Squelch quieting: 90 dB
  • AM rejection: 50 dB, 10 uV to 100 mV
  • Modulation acceptance: +/-20 kHz
  • Spurious rejection: Greater than 70 dB
  • Third order intercept: 0 dBm
  • Frequency response: 50 Hz to 18 kHz, (┬▒2db)
  • Distortion: 1% max at 50% modulation (system)
  • Audio output: 0 dBv (1 Vrms) UNBALANCED into 600 Ohms
  • Antenna: 1/4 wave vertical (fixed)
  • Front panel controls: Single knob controls Audio Output Level
  • LED Indicators: Power (red); RF (green); Level (green); Audio Limiter (red)
  • Power requirement: 8 Hours with 9V alkaline battery, 15 Hours with 9V lithium
  • Power consumption: 60 mA
  • Weight: 7.3 oz with battery
  • Size: 3.6" x 2.4" x 0.8" (housing only, belt clip and knob extend beyond the housing)
