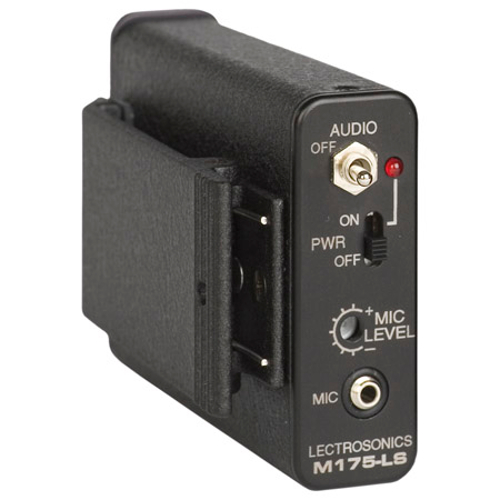

Lectrosonics M175LS
VHF Belt Pack Transmitter with Mute Switch

OUR PART #:  M175LS

The Lectrosonics M175 sets a new standard for mechanical design. Every external part on the transmitter is machined aluminum—including the battery door and belt-clip.
Learn More
Selected Model Price: $340.00
List Price: $485.00
Save up to 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics M175LS
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Lectrosonics M175 sets a new standard for mechanical design. Every external part on the transmitter is machined aluminum—including the battery door and belt-clip. The result is an extremely durable package. The precise fit and action of these mechanical parts makes handling and operating the M175 a genuine pleasure.

Battery compartments are often a source of problems in most wireless transmitters. The battery compartment in the M175 automatically adjusts to accommodate the wide variety of available 9 volt alkaline batteries. The floating polarity barrier provides positive protection against inserting the battery backward, and spring loaded contacts assure a solid electrical contact with the battery. The machined aluminum battery door is of a unique design which rotates open smoothly and “snaps” closed providing a secure fit for the battery.

Lectrosonics M175 Features:

  • Input limiter for low distortion and high signal to noise ratio
  • Continuously variable input gain
  • Machined aluminum housing and external parts
  • Spring-loaded, aluminum belt clip
  • Highly accurate battery status indicator
  • Self-adjusting battery compartment accommodates all makes of 9 volt alkaline batteries

Lectrosonics M175 Specifications:

  • Operating frequencies: 150 to 216 MHz
  • RF Power Output: 50 mW
  • Deviation: ±15kHz
  • Spurious Radiation: 50dB below carrier
  • Frequency Stability: ±0.005%
  • Equivalent Input Noise: -123dB
  • Input Sensitivity: 8mV to 1.6V for full modulation
  • Input Compressor: Soft Compressor; 12dB range
  • Electret Bias: +5 Volt DC (positive bias)
  • Antenna: Input cord or microphone body
  • Input Jacks: Twist-lock micro for electret microphones
  • Battery Indicator: LED indicates battery condition
  • Battery Life: Approximately 15 hours
  • Controls: Power on/off slide switch; Recessed audio gain control; Mute on/off toggle switch (M175-LS only)
  • Size: 1.3" x 2.35" x 3.7"
  • Weight: 6.6 oz with battery and microphone
