Product Overview

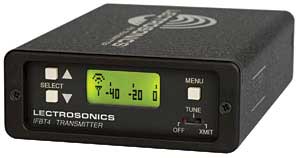

The Lectrosonics IFBT4 UHF transmitter was designed for use in broadcast, motion picture, theater, and stage applications where extended operating range and high quality audio are essential. The IFBT4 can be used as a stand-alone device or patched directly into popular intercom systems.
Lectrosonics Digital Hybrid Wireless™ systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.
Because it uses an analog FM link, Digital Hybrid Wireless™ enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.
Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.
Features:
- Digital Hybrid Wireless™ technology
- 256 UHF frequencies in 100kHz steps
- Microprocessor controlled operation
- 250mW power output for long range use
- Pilot tone squelch control
- Multi-use XLR input jack
- Built-in microphone preamp
- DIP switch programmable intercom input
- Tx mute for frequency scrolling
- Multi-function LCD display
- Compact size for use anywhere
- Rugged machined aluminum construction
- Operating Frequencies (MHz)
- Block 21: 537.600 - 563.100
- Block 22: 563.200 - 588.700
- Block 23: 588.800 - 607.900; 614.100 - 614.300
- Block 24: 614.400 - 639.900
- Block 25: 640.000 - 665.500
- Block 26: 665.600 - 691.100
- Block 27: 691.200 - 716.700
- Block 28: 716.800 - 742.300
- Block 29: 742.400 - 767.900
- Block 944: 944.100 - 951.900
Specifications:
- Frequencies (channels per block): 256
- Channel Spacing: 100kHz (0.1MHz)
- RF Power Output: 250mW
- Spurious & Harmonic Suppression: 37dBc above 1GHz
- Frequency Stability: +/-.001% (10ppm) @ 25°C
- Temperature Stability: +/-.001% (10ppm) from -30°C to +50°C
- Channel Selection: Momentary push-button switches, TUNE Up and Down
- Compatibility Modes (6): Digital Hybrid Wireless(tm) (400 series), 100 series, 200 series, Mode 3, Mode 6 and IFB
- Pilot Tone: 29.997kHz IFB & 100 MODE, 32.765kHz, 200 MODE, 400 MODE step selected
- Modulation: FM, +/-20 kHz deviation IFB & 100 MODE, +/-75KhZ 200 & 400 MODE
- Audio Frequency Response: 100Hz to 8kHz, +/-1dB, IFB MODE system response (see Rolloff); 30Hz to 20kHz +/-1dB, 200 & 400 MODE system response (see Rolloff)
- Rolloff: Low frequency audio rolloff is Menu selectable for 3dB down at 35Hz or 50Hz
- Signal to Noise Ratio: 90dB typical ("A" weighted)
- Audio Compressor: 2 to 1 IFB, 100, and 200 Mode
- Output Impedance: 50Ω
- Audio Input Levels: 0dBu for Line, RTS1 & RTS2; -10dBu for Clear Com; -42dBu for mic dry inputs (no phantom power); +/-50VDC max
- Audio Input Config: Balanced and Unbalanced, rear panel selectable for Line, Mic. RTS 1, RTS 2, and Clear Comm
- Audio Input Impedance: Greater than 2K balanced, greater than 1K unbalanced at any gain setting
- Gain Control Range: -18dB to +24dB (0dB nominal center), Menu selectable
- Audio Input Jack: Standard XLR female connector
- Input Power: 12 to 14VDC typical, 200ma. max; Max. Input Range 6 to 18VDC
- Power Input Jack: Coax type, locking LZR RL26AE
- Indicators: Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, rolloff, audio level, and tuning groups
- Front Panel Controls: MENU momentary push-button switch; Power OFF-TUNE-XMIT, 3 position slide switch; Select Up momentary push-button switch; Select Down momentary push-button switch
- Rear Panel Controls: Input Mode Select, 4 section DIP switch
- Weight: 9oz
- Size (L x W x H): 5.25" (including connectors) x 3.25" x 1.25"
