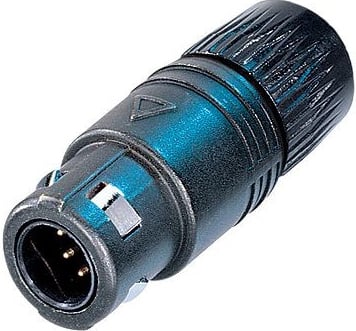

Neutrik OSC8M
Neutricon Male Cable Connector

OUR PART #:  OSC8M

The Neutrik Neutricon® connectors are designed for multipin/industrial applications in harsh and demanding environment.
Learn More
Sale Price: $9.00
List Price: $13.64
Save up to 36% when you order by quantity!
  • Buy 100: $8.69 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik OSC8M
Qty:
Similar Products

The Neutrik Neutricon® connectors are designed for multipin/industrial applications in harsh and demanding environment. The all-metal circular connector offers easy and screwless assembly, flexible part combination and a push/pull locking mechanism.

Neutrik OSC8M Features:

  • Black Housing
  • 8 Solder Contacts
  • Chuck-type strain relief
  • 180° coding
  • Contact soldering in disassembled condition avoids awkward wiring of high-density contacts.

Neutrik OSC8M Specifications:

  • Connector Type: Neutricon
  • Gender: male
  • Contact resistance: </=5 mOhm
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 0.5 GOhm (after damp heat test IEC 68-2-30)
  • Rated current per contact: 7.5 A
  • Rated voltage: 50 V
  • Cable O.D.:3-7 mm
  • Cable retention force: > 50 N
  • Insertion force: < 25 N
  • Lifetime: >1000 mating cycles
  • Wire size: 1 mm²
    18 AWG
  • Wiring: soldercontacts
  • Locking device: Push-Pull
  • Contact plating: 0.3 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass
  • Insert: PBTP15 % GR
  • Shell: Zinc diecast
  • Shell plating:Black chromium
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Protection class: IP 5X
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
