Datavideo Corporation TB-5
Tally Box, for SE-500

OUR PART #:  TB-5

Our Price: $150.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Datavideo Corporation TB-5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Datavideo's TB-5 Tally Box is an accessory for the SE-500 or SE-900 switchers which takes tally commands from the switcher and turns on/off up to four tally lights to indicate "next up" and "live". The tally lights are connected and powered by mini phono plugs. Each TB-5 unit comes packaged with four tally lights, one cable for each light, serial cable to connect to the switcher, and a power adapter. Use two sets of TB-5s for up to 8 tally lights when connected to the SE-900.

Note: If you are using the SE-800 / RMC-90 the Tally LED outputs 1,2,3 & 4 are the same as the SE-800 input channels A, B, C and D.

Specifications:

  • Power Requirements: 12V DC 500mA
  • Input: 15-Pin Tally Feed from SE-500/ RMC-90
  • Output: 4 x 3.5mm Jack Sockets to TD-1 Tally Light
  • Size (in mm): 76 x 62 x 24 (L x W x H)
  • Weight (in grams): 158g

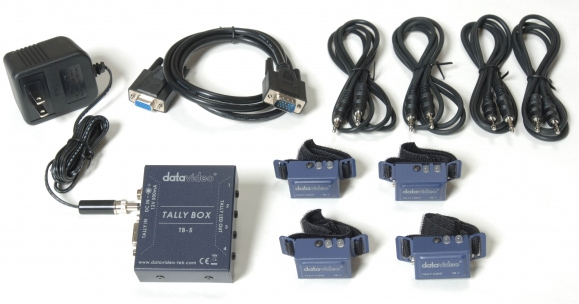

What's In The Box:

  • (4) 3.5mm male to male TRS connectors
  • (1) 15-pin D-sub Tally control cable
  • (4) Tally Light Indicators
  • (1) TB-5 Tally box unit
  • (1) 12V 0.5A DC 110/220 power supply and cord included
