Yamaha IF2208W 15" 3-Way Speaker 60x40 Degree Rotatable Dispersion

The Installation Series provides a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.

Features:

• • Sound and phase characteristics matched with all other Installation Series models.
• • Dual 8” woofers plus 1.75" high-frequency compression driver with 1" exit.
• • 90º x 60º dispersion pattern.
• • Multi-angle cabinet design enables floor monitor applications.
• • Horn can be rotated 90-degrees, allowing vertical or horizontal mounting.
• • Eleven 10mm-screw (M10) and six 8mm-screw (M8) suspension points provided for flexible rigging.
• • Durable white finish (can be painted to match any interior).
• • Optional matching U-bracket available.
• • Parallel-wired two Neutrik NL4 and barrier strip connectors.

Specifications:

• Frequency Response: 75 Hz-18k Hz
• Frequency Range: 55 Hz-19k Hz
• Nominal Coverage: 90° x 60°
• Power Rating: 200 W (EIA)
• Nominal Impedance: 8 ohms
• Sensitivity (1 W @ 1 m): 95 dB SPL
• Calculated Peak SPL: 124 dB SPL
• Calculated Continuous SPL: 118 dB SPL
• LF Component: 2 x 8" Woofer, 2" Voice Coil
• HF Component: Rotatable Constant Directivity Horn, 1" exit, 1.7" VoiceCoil Compression Driver
• Dimensions (h x w x d): 26.5 x 11.1 x 9.8 in
• Weight: 37 lbs
• Shape: Multi-Angle Wedge
• Material: 5/8inch (16mm), 11-ply Finland Birch
• Finish: White
• Grill: 14 gauge powder coated perforated steel backed with acoustically transparent reticulated foam
• Connectors: 2x Neutric NL4 and barrier strip, wired in parallel
• Suspension Points: 11x M10, 6x M8
• U-Bracket: UB2208(W)

Note:

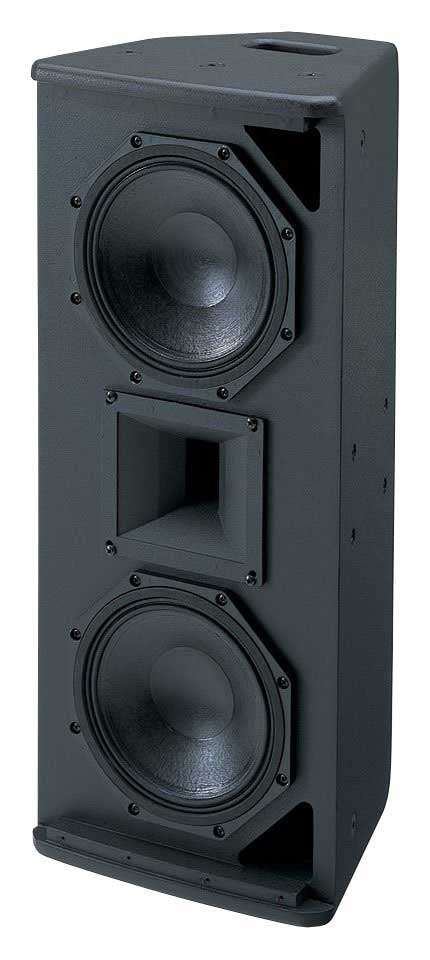

[Black Version Shown Above]
