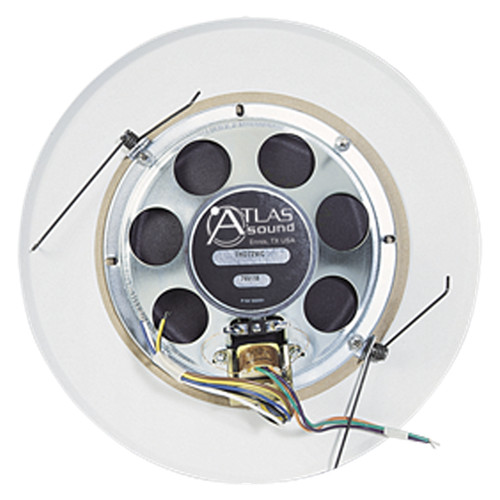

Atlas IED THD72WC 8" Loudspeaker with 25 V/70.7 V 4W Transformer and T62-8 Baffle

The Atlas Sound THD72WC is a cost-effective 8" dual-cone loudspeaker assembly that delivers wide frequency response for general purpose voice and music reproduction. Ships complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements.

Atlas Sound THD72WC Features:

• Equipped with 25, 70.7, 25/70.7V Transformer
• Decrease Installation Time and Expense with Pre-Assembled Loudspeaker, Transformer, & Baffle Combinations

Atlas Sound THD72WC Specifications:

• Speaker Type: Treated Paper
• Frequency Response: 100Hz - 10kHz
• Power Taps: .5, 1, 2, & 4 Watts
• Dispersion: 105°
• Sensitivity: 97dB Peak, 94dB Average
• Depth: 2-7/8" (7.3025 cm)
• Diameter: 8" (20.32 cm)
• Shipping Weight: 4.50 lbs (2.04 kg)
