Product Overview

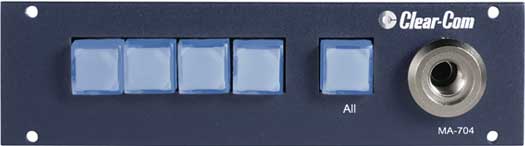

The MA-704 from Clear-Com is one of their IFB Master Control Access Stations. This version can be console-mount or rack-mounted and controls the program interrupt (IFB) to four talent channels. The MA-704 also includes a gooseneck mic connector and illuminated All Talent; and is powered via the intercom line.

Features

  • One MA-704 is required at each Talent Access control location
  • "ALL" button to simultaneously access all Talent positions
  • Front Panel Controls & Indicators:
    • (5) Talk buttons
    • (1) ¼" microphone jack socket
  • Rear Panel Connectors:
    • IFB Input: (1) XLR6F
    • IFB Extension: (1) XLR6M
    • Extension Bus Out: (1) ¼" jack
    • External Line In: (1) ¼" jack
    • Mic Gain: (1) Gain adjust

Specifications

  • Panel Microphone Input:
    • Input Type: Electret
    • Input Impedance: >=2KΩ
    • Mic Limiter Threshold: 0dB ± 3dB
    • Mic Limiter Range: >= 15dB
  • Frequency Response:
    • Panel Mic – Talent: 200 – 18KHz ± 3dB
    • Extension Line – Talent: 200 – 18KHz ± 3dB
  • Max Distortion:
    • Panel Mic – Talent: < = 0.5%
    • Extension Line – Talent: < = 0.1%
  • Noise:
    • Panel Mic – Talent: < -65dBu
    • Extension Line – Talent: < -85dBu
  • Max Gain:
    • Panel Mic – Talent: < = 40dB
    • Program Input – Talent: < = -45dB
  • Power:
    • Input Voltage Range: 20-30 VDC
    • Input Current (Idle):< = 140mA
    • Input Current (Max):< = 180mA
  • Environmental: 32°F to +122°F (0°C to +50°C)
  • Dimensions (HxWxD) 1.75 x6.3 x 5.5 in (44 x 160 x 140 mm)
  • Weight: 1.71lbs (0.78 kg)

NOTES:

  • Additional information available by accessing the "Clear-Com PIC-4744/MA-704/AX-704 Datasheet" located under the "DOCUMENTATION" tab above.
  • *Clear-Com IC-25-6 cable is required for operation, and is sold separately.
