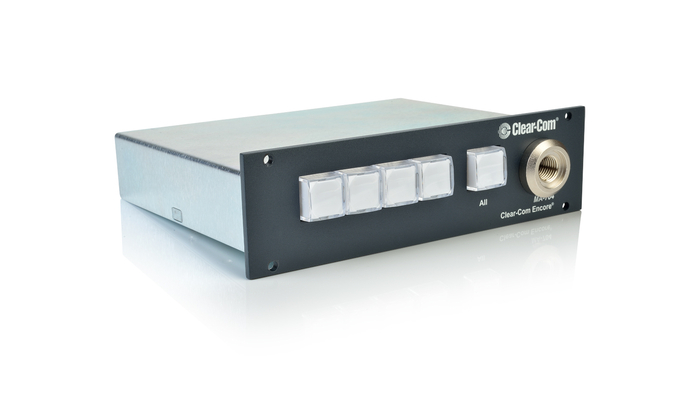

Clear-Com MA-704
Program Interrupt/IFB System Master Control/Talent Access Station

OUR PART #:  MA704

The Clear-Com MA-704 master control access station provides individual access to 4 talent channels.
Learn More
Our Price: $873.00
List Price: $970.00
You save 10%!
Write the first review.
Clear-Com MA-704
Qty:
In Stock

Related Products

The Clear-Com MA-704 master control access station provides individual access to 4 talent channels. It features an "ALL" button that is used to simultaneously access all Talent positions. It works in together with the both PIC-4744 IFB Router and AX-704 Expansion Stations – sold separately, and can be rack-mounted using the optional CEP-RK rack-mount kit – sold separately). One MA-704 is required at each talent access control location – additional units sold separately. It's designed for stand-alone operation or for direct console mounting.

NOTE: Clear-Com IC-25-6 cable is required for operation, and is sold separately.

Clear-Com MA-704 Technical Details/Specifications:

Panel Microphone Input

  • Input Type: Electret
  • Input Impedance: >=2 kOhm
  • Mic Limiter Threshold: 0 dB ± 3 dB
  • Mic Limiter Range: >= 15 dB

Frequency Response

  • Panel Mic - Talent: 200 - 18 KHz ± 3 dB
  • Extension Line - Talent: 200 - 18 KHz ± 3 dB

Max Distortion

  • Panel Mic - Talent: <= 0.5%
  • Extension Line - Talent: <= 0.1%

Noise

  • Panel Mic – Talent: < -65 dBu
  • Extension Line - Talent: < -85 dBu

Max Gain

  • Panel Mic - Talent: <= 40 dB
  • Program Input - Talent: <= -45 dB

Power

  • Input Voltage Range: 20-30 VDC
  • Input Current (Idle): <= 140mA
  • Input Current (Max): <= 180mA

Rear Panel Connectors

  • IFB Input: (1) XLR6F
  • IFB Extension: (1) XLR6M
  • Extension Bus Out: (1) ¼" jack
  • External Line In: (1) ¼" jack
  • Mic Gain: (1) Gain adjust

Front Panel Controls & Indicators

  • (5) Talk buttons
  • (1) ¼" microphone jack socket

Environmental

  • Temperature: 32° F - +122° F (0° C - +50° C)

Physical

  • Dimensions (H x W x D): 1.75" x 6.3" x 5.5" (160 x 44 x 140mm)
  • Weight: 1.71 lbs. (0.78 kg)

Note: Additional information available by accessing the "Clear-Com PIC-4744/MA-704/AX-704 Datasheet" located under the "DOCUMENTATION" tab above.
