Product Overview

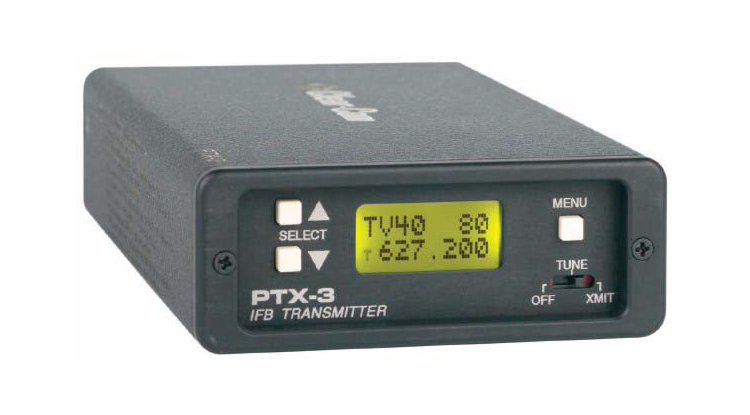

The PTX-3 is a Wireless IFB (interruptible fold back) Intercom system from Clear-Com is a UHF wireless IFB Transmitter base station with 256 selectable frequencies at 100kHz increments. These systems are used for talent cueing as well as crew communications in Broadcast and motion picture production settings. In other cases, it can be used by directors and other management to monitor program audio during a production. Standalone or rack-mountable with the PRK-2 kit (sold separately). Non-RoHs
Clear-Com PTX-3 Specifications:
- Operating frequencies (MHz):
- Frequency Band D: 614.400 - 639.900
- Frequency Band E: 640.000 - 665.500
- Frequency Band F: 665.600 - 691.100
- Frequencies Channels (per block): 256
- Channel spacing: 100 kHz (0.1 MHz)
- Spurious & Harmonic Suppression: 37 dBc above 1 GHz
- Frequency Stability: ±.001% (10 ppm) @ 25º C
- Temperature Stability: ±.001% (10 ppm) from -30º C to +50º C
- Channel Selection: Momentary pushbutton switches, TUNE UP and Down
- Compatibility Modes: IFB, Digital Hybrid Wireless; 400 Mode, 200 Mode, 100 Mode, Mode 3, Mode 6
- Pilot Tone: 29.997 kHz IFB Mode, 32.765 kHz; 200 Mode, 400 Mode step selected, 32.768 kHz Mode 6
- Modulation: FM, ±20 kHz deviation IFB & 100 Mode, ±75kHz 200 & 400 Mode, ±50kHz Mode 3 and Mode 6
- Audio Frequency Response:
- 100 Hz to 8 kHz, ±1 dB, IFB MODE system response (see Rolloff)
- 30Hz to 20kHz ± 1dB, 200 & 400 MODE system response (see Rolloff)
- Rolloff: Low frequency audio rolloff is Menu selectable for 3 dB down at 35 Hz or 50 Hz
- Signal to Noise Ratio: 90 dB typical (“A” weighted)
- RF Power Output: 250 mW (nominal)
- Output Impedance: 50 Ohms
- Audio Input Levels:
- 0 dBu for Line, RTS1 &RTS2
- -10 dBu for ClearCom
- -42 dBu mic dry inputs, +/-50VDC max
- Audio Input Config: Balanced and Unbalanced, rear panel selectable for Line, Mic, RTS 1, RTS 2, and ClearCom
- Audio Input Impedance:
- Greater than 2 K balanced
- Greater than 1K unbalanced at any gain setting
- Control Range: -18 dB to +24 dB (0 dB nominal center), software selectable
- Audio Input Jack: Standard XLR female connector
- Input Power: 12 to 14 VDC typical, 200 mA max; Max input range 6 to 18 VDC
- Power Input Jack: Coax type, locking LZR RL26AE
- Indicators: Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, rolloff, audio level, and tuning groups
- Front Panel Controls:
- MENU momentary pushbutton switch
- Power OFF-TUNE-XMIT, 3-position slideswitch
- Select Up momentary pushbutton switch
- Select Down momentary pushbutton switch
- Rear Panel Controls: Input Mode Select, 4-section DIP switch
- Weight: 9 oz.
- Size: 5.25" long (including connectors) x 3.25" wide x 1.25" high
- Emission designator: 180KF3E
Note
Note: Actual operating performance may vary, and all information is subject to change without notice. This product is not approved for sale in Europe.
Note: The T4 IFB transmitter is FCC type accepted under Part 74:470-608MHz and 944.1 - 951.9 MHz.
Note: This device complies with FCC radiation exposure limits as set forth for an uncontrolled environment. This device should be installed and operated so that its antenna(s) are not co-located or operating in conjunction with any other antenna or transmitter. A separation distance of at least 20cm (8 inches) must be maintained to comply with the FCC Radio Frequency Maximum Permissible Exposure (MPE) requirements.
