Product Overview

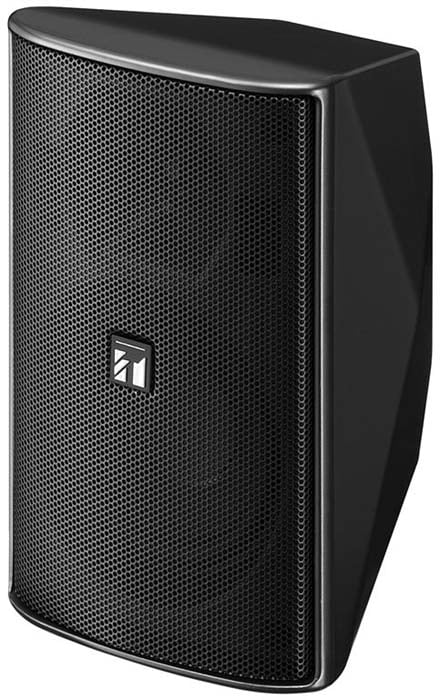

F-1000 Series indoor speaker designed to provide high quality sound and reliable performance for restaurants, retail, and audio/visual applications. Features include two-way bass-reflex design, high impact polystyrene enclosure with a 4" low frequency driver and dome tweeter. Black enclosure, 70V.
Includes:
- Speaker bracket x1
- Joint bracket x1
- Wall bracket x1
- Bracket fixing screw x1 set
Features:
- Compact box speakers for music and voice paging distribution
- Excellent sound quality
- Octagonal horn design for smooth coverage
- Extruded cabinet design improves low frequency performance
- Individual protection circuit on each component
- Screwdriver-adjustable power taps
- Paintable grille and enclosure
- Wall / ceiling-mount bracket included
- Five-year warranty
Specifications:
- Enclosure: Bass-reflex type
- LF Driver: 4” cone woofer
- HF Driver: Soft-dome tweeter
- Crossover: 5kHz
- Power Handling: 90W (cont. PGM), 30W (pink noise), 15W (70V transformer.)
- Sensitivity (1W @ 1m): 87dB SPL
- Dispersion: 90°H x 90°V
- Rated Input: 15W (high impedance)
- Power Handling Capacity:
- Continuous pink noise: 30W (low impedance)
- Continuous program: 90W (low impedance)
- Rated Impedance: 8Ω
- 100V line: 670Ω (15W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)
- 70V line: 330Ω (15W), 670Ω (7.5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W)
- Sensitivity: 87dB (1W @ 1m) at installation in 1/2 free sound field
- Frequency Response: 85Hz - 20kHz, -10dB at installation in 1/2 free sound field
- Crossover Frequency: 5kHz
- Directivity Angle: Horizontal: 90°, Vertical: 90°
- Speaker Component:
- Low frequency: 10cm (4") cone-type
- High frequency: Balanced dome tweeter
- Input Terminal: Push-in terminal
- Finish:
- Enclosure: HIPS, black
- Punched net: Surface-treated steel plate, black, paint
- Joint bracket, wall bracket: Steel plate, t1.6, black, paint
- Speaker bracket: Die-cast aluminum, black, paint
- Dimensions: 130 (W) × 202 (H) × 131 (D) mm (5.12" × 7.95" × 5.16")
- Weight: 2kgs (4.41lbs) (including the supplied brackets)
