Hear Technologies Freedom Back
Wireless Stereo In-Ear System

OUR PART #:  FREEDOM-BACK-SYSTEM

The Freedom Back is a high quality UHF wireless stereo in-ear monitor system designed to replace loud...
Learn More
Selected Model Price: $549.00
List Price: $699.00
Save up to 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Hear Technologies Freedom Back
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Freedom Back is a high quality UHF wireless stereo in-ear monitor system designed to replace loud, bulky and unsightly stage monitors while allowing the talent the freedom to move about the stage. It is a perfect companion to our highly successful Hear Back personal monitor mixer system and the acclaimed Mix Back matrix monitor mixer.

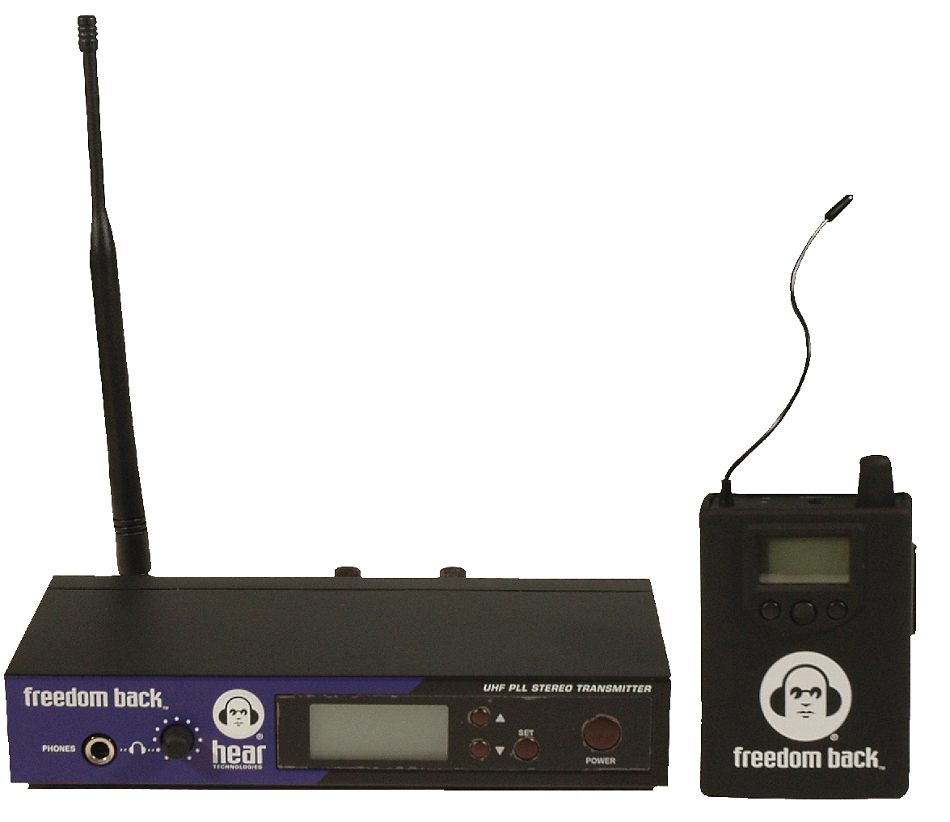

The Freedom Back system includes a transmitter with antenna, wireless stereo receiver, carrying case, and rack mount kit with an extension cable for mounting the antenna on the front panel. Freedom Back is available in UA and UB bands making it possible to utilize numerous units on a stage at one time. Band A operates from 584 – 608 MHz and band B operates from 655 – 679 MHz. With 120 channels per band, the user will be able to select frequencies that will not be subject to local TV station interference.

Hear Technologies Freedom Back Features:

  • Transmitter:
    • 120 digitally selectable UHF channels
    • Up to 10 transmitters may be used in the same space, depending on local UHF interference
    • Stereo or Mono switch on the rear of the transmitter
    • Back-lit LCD display of frequency, audio level, group and channel
    • XLR and 1/4 ” combo input connectors
    • Built-in automatic limiter
    • Stereo headphone or in-ear monitor jack with volume control
    • PAD switch attenuates signal by 12 dB
    • External whip antenna can be front mounted with included rack ears and extension cable
  • Receiver:
    • Wireless stereo belt pack allows freedom to move about the stage
    • Unlimited receivers may be used with one transmitter, when on the same frequency
    • Back-lit LCD displays frequency, group, channel, battery indicator, and Mono/Stereo
    • Stereo headphone or in-ear monitor jack with volume control
    • RF present LED
    • Batteries included

Hear Technologies Freedom Back Specifications:

  • Overall System:
    • Operating Range:  330 ft (100 m) line of sight, under typical conditions
      • Note:  Actual range depends on RF signal absorption, reflection, and interference.
    • Frequency Response (+/- 3 dB):  40 Hz - 16 KHz
    • Total Harmonic Distortion (+/- 30 KHz deviation, 1KHz tone):  <1%
    • Dynamic Range:  >90 dB A-weighted
    • Operating Temperature Range:  -10°C to +50°C
    • Note:  Battery characteristics may limit this range
  • Transmitter:
    • Max Audio Input Level:  +6 dBV, +18 dBV with -12dB PADengaged
    • Gain Adjustment Range:  60 dB
    • Input Impedance:  10k Ohms unbalanced, 20k Ohms balanced
    • Physical:
      • Dimensions:  1.5” H x 8.35"(W) x 3.78"(D)
      • Weight:  1.34 lbs (0.6 kg)
    • Power Requirements:  12 - 18 VDC at 300 mA, supplied by external power supply
    • LR Input:  Balanced
      • Pin 1 = Shield
      • Pin 2 = + Audio
      • Pin 3 = - Audio
    • TRS Input:
      • Tip = + Audio
      • Ring = - Audio
      • Sleeve = Shield
  • Wireless Stereo Receiver:
    • Audio Output Level:  100 mW
    • Sensitivity:  -94 dB for 30 dB SINAD, typical
    • Image Rejection:  >55 dB
    • Physical:
      • Dimensions:  3.74"(H) x 2.56"(W) x 0.98"(D)
      • Weight:  3.52 oz (100 g) without batteries
    • Power Requirements:  2 “AA” size Alkaline orrechargeable batteries
    • Battery Life:  Approximately 4 ~ 5 hours (alkaline), load and level dependent
Transmitter for Freedom Back System, Band A
295.00 395.00 25

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available Special Order Item
Receiver for Freedom Back System, Band A
275.00 349.00 21

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available Special Order Item
