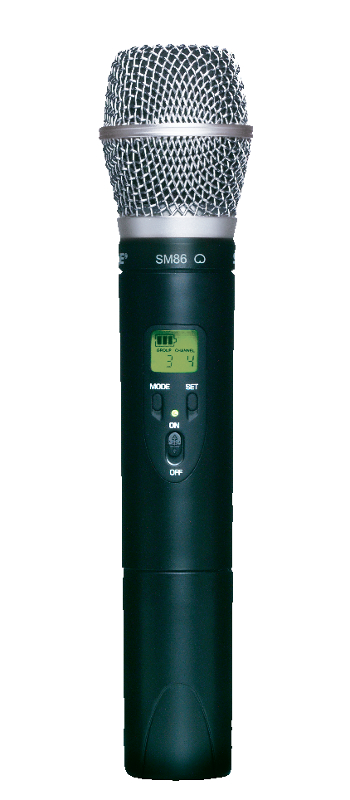

Shure ULX2/SM86-J1 ULX Series Wireless Handheld Transmitter with SM86 Mic, J1 Band (554-589MHz)

The Shure ULX2/SM86-J1 is an ULX Series wireless handheld transmitter with an SM86 cardioid condenser capsule that operates in the 554 - 589 MHz UHF wireless frequency range. The transmitter features a 3-segment battery fuel guage, backlit LCD that shows group and channel, frequency and power settings, control lockout, 8 hour battery life, and a 300 ft (92 m) operating range.

The SM86 cardioid condenser capsule provides a tailored frequency response for clear reproduction of vocals and features a built-in three-point shock mount and two-stage pop filter.

Shure ULX2/SM86-J1 features:

• ULX2 Transmitter:
  • Power: On/Off switch, battery
  • LED: Green when on, Red when Battery Low
  • Three-segment battery power icon
  • PEAK icon appears when audio signal overloads
  • Group/channel displays
  • SET button for saving settings
  • Adjustable audio gain control
  • 4-pin mini connector
  • Battery cover unscrews to expose battery and gain control
  • 8 hour battery life
  • 300 ft (92 m) operating range (Line of Sight)
• SM86 Capsule:
  • Cardioid condenser cartridge for studio quality sound
  • Tailored frequency response for vocal clarity
  • Built-in three-point shock mount and two-stage pop filter for superior isolation

Shure ULX2/SM86-J1 Specifications:

• ULX2 Transmitter:
  • Gain Adjustment Range: 25dB (continuously adjustable)
  • RF Power Output: 30mW maximum (dependant on applicable country regulations)
  • Power Requirements: 9 V alkaline battery
  • Battery Life: Up to 8 hours
• SM86 Capsule:
  • Type: Condenser (electret bias)
  • Frequency Resposne: 50 Hz - 18 kHz
  • Polar Pattern: Cardioid
