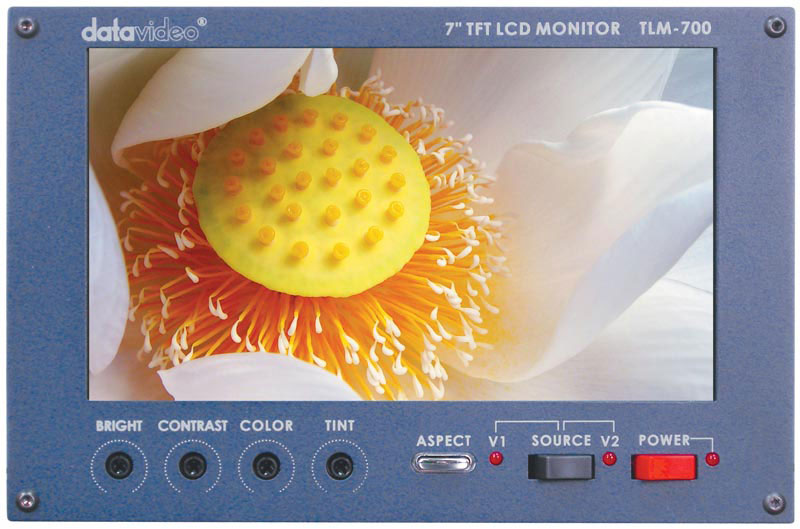

Datavideo Corporation TLM700
LCD Monitor, 7", Widescreen, TFT


7" 16:9 widescreen monitor with adjustment for brightness, contrast, color & tint (tint control in NTSC mode only)...
Learn More
Sale Price: $399.99
List Price: $450.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Datavideo Corporation TLM700
In Stock

Similar Products

7" 16:9 widescreen monitor with adjustment for brightness, contrast, color & tint (tint control in NTSC mode only), the TLM700 features two selectable video inputs and NTSC/PAL auto-switching. For flexibility can be powered via 12V DC or AC power.

The Datavideo TLM Monitor Series is designed for video professionals that insist on superior performance. After all, every professional known that you are only as good as the tools you use. Datavideo works closely with LCD manufacturers to ensure only the highest quality displays are used, and offers a guarantee against spotlight defect.


  • Screen Details: 7" widescreen 16:9 panel (also supports 4:3)
  • Brightness: 500 CD/MM
  • Video I/O: Two composite video inputs
  • Resolution: 480x234
  • Viewing Angles:
    Top: 40 degrees
    Bottom: 60 degrees
    Left: 60 degrees
    Right: 60 degrees
  • Contrast Ratio: 300:1
  • Image Adjustments: Brightness, contrast, color, tint (NTSC only), 16:9/4:3 switching
  • Operating Conditions: 0 to 50 degrees C, RH less than 90%
  • NTSC/PAL auto-switching
  • Collapsible sunshade
  • Dimensions (W x H x D): 7.3" x 5" x 1.5"
  • Net Weight: 1.5 lbs
  • Included Accessories
  • Cables & Adapters: One 4' M/M BNC cable
  • Power Supply: 12V 1.5A AC/DC switching power adapter
  • Misc.: Removable sunshade; carrying case
