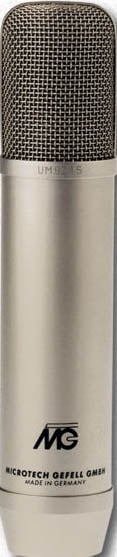

Microtech Gefell UM92.1S UM 92.1S

OUR PART #: UM92.1S MFR #: 211138

Copied to clipboard

Microtech Gefell's UM 92.1 S studio microphone features their M7 capsule, a pressure gradient transducer with 2 large-diameter gold-sputtered plastic membranes. ...Read more

Microtech Gefell UM92.1S UM 92.1S Image 1
Microtech Gefell UM92.1S UM 92.1S Image 2
Microtech Gefell UM92.1S UM 92.1S Image 3
Microtech Gefell UM92.1S UM 92.1S Image 4
Microtech Gefell UM92.1S UM 92.1S
Selected Model Price: $3,702.78
List Price: $3,734.50
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Microtech Gefell's UM 92.1 S studio microphone features their M7 capsule, a pressure gradient transducer with 2 large-diameter gold-sputtered plastic membranes.

3 directional characteristics - omni-directional, cardioid and figure-8 - are selectable with a pattern selector switch that is mounted on the power supply. The vacuum tube microphone shows a considerable signal-to-noise ratio and a high sensitivity. The UM 92.1 S has the typical warm full sound of tube microphones that is commonly preferred by singers and soloists. The direction of maximum sensitivity is radial to the grill (side addressed).

NOTE: Comes in satin nickel and black matte finishes. Includes power supply, cable, and metal carrying case.

The vacuum tube amplifier uses a pentode working as high µ triode for its sonic characteristics.

The UN 920.1 power supply provides the polarization voltage for the capsule and the necessary DC voltages to the microphone amplifier. It is recommended to set the heater voltage of the power supply to 5.8 volts for cable lengths longer than 50 meters. The UN 920.1 can be powered from AC mains with the primary voltage from 115 or 230 volts - 50 or 60 Hz.

Mounted on the front panel are the pattern selector switch and the on/off switch. Mounted on the rear panel are the AC mains connector (with choice of voltage), the 7-pin Tuchel connector which powers the microphone and a standard 3-pin XLR connector for audio output.

Specifications:

  • Polar patterns: omni, cardioid, figure-8
  • Acoustical operating principle: Pressure gradient transducer
  • Frequency range: 40Hz - 18kHz
  • Sensitivity at 1 kHz: 15 mV / Pa
  • Rated impedance: 200
  • Equivalent loudness level due to inherent noise:
    • CCIR468-4: 25 dB
    • DIN EN 60651: 17 dB - A
  • Signal-to-noise-ratio (re. 1 Pa at 1kHz):
    • CCIR-weighted: 69 dB
    • A-weighted: 77 dB
  • Max. SPL for THD 0.5%: 120 dB
  • Total dynamic range of the microphone amplifier: 103 dB
  • DC power supply: 120 V -
  • Anode current: 1 mA -
  • Heater voltage: 5.8 V -
  • Heater current: 200 mA -
  • Tube: EF 86
  • Output connector: 7- pin Tuchel C 70 / A
  • Weight: 430 g
  • Dimensions: 197 mm x 42 mm
