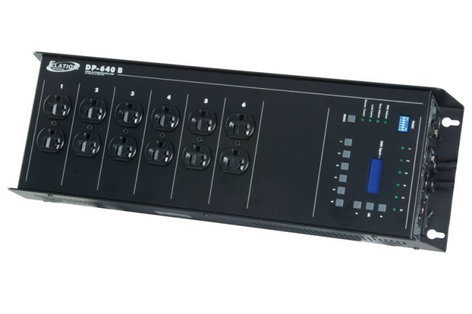

Elation Pro Lighting DP-640B
6 Channel Dimmer/Relay Pack with Circuit Breakers

OUR PART #:  DP-640B

The Elation Pro Lighting DP-640B DMX Pack is a hybrid 6-channel portable dimmer/switch pack that supports up to 2,400W per channel and 4,800W maximum total output.
Learn More
Our Price: $480.00
List Price: $600.00
You save 20%!
Write the first review.
Elation Pro Lighting DP-640B
Qty:
In Stock

Related Products

The Elation Pro Lighting DP-640B DMX Pack is a hybrid 6-channel portable dimmer/switch pack that supports up to 2,400W per channel and 4,800W maximum total output. Each channel can individually be set to dim or switch and be controlled via a unique DMX addresses. Each channel can be conveniently manually controlled via an easy to use digital display and function buttons. The Panic function allows you to select desired channels to switch on constantly via the six dip switch settings. Features includes a digital control display, LED indicators for each channel, 3/5pin XLR DMX input and output, a die-cast aluminum chassis, and a hanging bracket is included for truss/clamp installations.

Elation Pro Lighting DP-640B Features:

  • Two 20 AMP Circuit Breakers
  • Six Dual Function Channels (Dimming or Power Switching Modes)
  • Individual DMX Address for each Channel
  • Constant On Channel Selection
  • Hanging Bracket Included for Truss/Clamp Installations

Elation Pro Lighting DP-640B Specifications:

  • Control/Connections:
    • Digital LED Control Menu Display
    • On-Board Local Control For Dimming Intensity Adjustment (0-100%)
    • PANIC Function ON/OFF DIP Switches
    • Two 20 AMP / 120V Rated Power Line Cords NEMA 5-20P Power Connectors
    • Two 3-prong Edison Sockets per Channel (12 total)
    • 3pin / 5pin XLR DMX Input and Output Connections
    • Two Master Power Switches
  • Dimensions (LxWxH): 19.7” x 6.6” x 3.7” (500 x 167 x 93mm)
  • Weight: 7.5 lbs. (3.4kg)
  • Electrical/Thermal:
    • Power Input: 2 x 20 AMP AC 120V 50/60Hz
    • Line Cord: 2 x 12AWG x 3C
    • Load: 2,400W Max Power Consumption Per Circuit (2,400W Channels 1-3 and 2,400W Channels 4-6)
