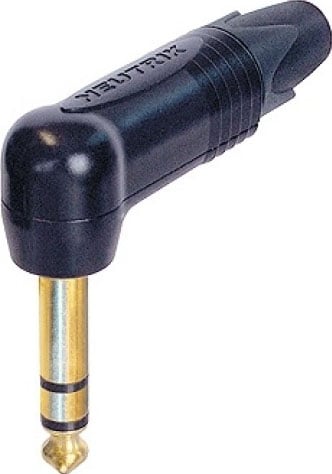

Neutrik NP3RX-B 1/4" TRS Right Angle Cable Connector, Gold Contacts and Black Shell

The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck-type strain relief on the market. The slimline, 14.5 mm wide shell meets the most recent requirements for highest-density jackfields (15.88 mm jack pitch). The precise machined one-piece tip contact (without rivets) makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features:

• All-metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision-machined one-piece contacts - avoid hook-up of tip contact

Specifications:

• Connector Type: Plug
• Gender: male
• Contactresistance: depends on mating connector mOhm
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GOhm (initial)
• nsulation resistance: >/= 1 GOhm (after damp heat test)
• Rated current per contact: < /= 15 A
• Cable O.D.:4-7 mm
• Wire size: 1 mm² 18 AWG
• Wiring: Solder contacts
• Bushing:Polyacetal (POM) + PU
• Contact plating: 0.2 µm Au
• Contacts: Brass
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)
• Standardcompliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
