JBL VRX918SP 18" Powered Flying Subwoofer

OUR PART #: VRX918SP MFR #: VRX918SP

Copied to clipboard

The VRX918SP from JBL Professional is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®... ...Read more

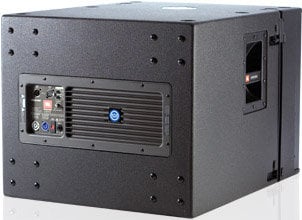

JBL VRX918SP 18" Powered Flying Subwoofer Image 1
JBL VRX918SP 18" Powered Flying Subwoofer Image 2
JBL VRX918SP 18" Powered Flying Subwoofer
Our Price: $2,500.00
List Price: $3,610.00
You save 31%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$70/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The VRX918SP from JBL Professional is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features

  • 1500W peak power from onboard Drivepack DPC-2 amp, designed by Crown
  • 18", 2268FF dual voice coil, neodymium magnet Differential Drive woofer
  • Integral rigging hardware
  • Optional array frame
  • 20mm threaded pole socket for solid, secure satellite speaker mounting

Specifications

  • Frequency Response: 34 Hz - 220 Hz
  • Frequency Range: 31 Hz - 220 Hz
  • Maximum Peak Output: 126dB SPL peak
  • DPC-2 Internal Amplification Output (at nominal load): 1500Watts Peak, 750 Watts Continuous
  • DPC-2 Output (Continuous IEC shaped pink noise into rated load impedance): LF: 750 Watts
  • DPC-2 Output Section: LF: Dual Bridged Technology™, Class D
  • Audio Input connector: XLR with loop-through
  • User Controls: Input Attenuator (0-16 dB), Selectable 80 Hz or120 Hz Low Pass, 80 Hz high-Pass enable/disable for XLR loop thru
  • Signal Processing: DSP Based, resident in Input Module
  • System Management: DSP based limiters for mechanical and thermal protection
  • AC Power Operating Range: 90-132 VAC or 216-264 VAC,50/60Hz
  • AC Line Voltage: User Selectable; 120V/240V (-15%, +10%)
  • AC Input Connector: Neutrik PowerCon (NAC 3MPA)
  • AC Loop-thru: Neutrik PowerCon (NAC 3MPB)
  • AC Current Requirement: 6A per system at 120V, 3A per system at 240V
  • LF Driver: 1 x JBL 2268FF 457mm (18") Differential Drive Woofer
  • Enclosure: Rectangular, 28mm
  • Suspension/Mounting: Optional VRX-AF line-array-frame kit or 10mm forged eyebolts.
  • Finish: Black DuraFlex™ finish.
  • Grille: Powder-coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing
  • Dimensions: 20" H x 23.5" W x 29.5" D (508 x 597x749 mm)
  • Net Weight: 38.5 kg (85 lbs)
