1750W 12" 2-Way Powered Line Array Loudspeaker System

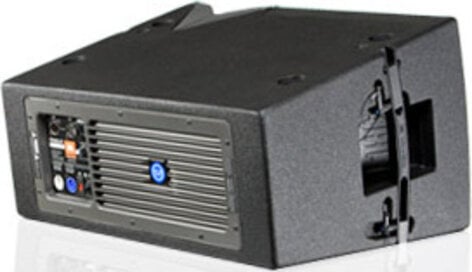

The JBL VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units.
Learn More
Our Price: $2,699.00
List Price: $3,429.00
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LAP speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LAP, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

VRX932LAP uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower box is shaded back to reduce excessive level at the front of the listening area. This yields to a more coherent sound field and less feedback problems.

One or two VRX932LAP’s may also be used on a tripod or over subwoofers. The integrated rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.  As many as five VRX932LAP speaker systems may be suspended in a single array for a nominal vertical coverage of up to 75°. Suspended applications require the JBL VRX-AF array frame or eye bolts (available separately).

JBL VRX932LAP Features:

  • Built-in JBL DrivePack DPC-2 amplifier module designed by Crown provides 1750 Watts of peak power.  DSP-based resident input module provides system optimization and EQ.
  • JBL's exclusive neodymium magnet Differential Drive woofer for high-power capacity and lightweight.
  • VRX932LAP features 3x 2408J Annular Ring Diaphragm HF drivers.  The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame.  Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".

JBL VRX932LAP Specifications:

  • Frequency Response: 57 Hz - 20 kHz (-10 dB)
  • Frequency Range: 75 Hz - 20 Hz (+/-3dB)
  • Maximum Peak Output: 136 dB SPL at 1m
  • DPC-2 Internal Amplification Output (at nominal load): 1750 Watts Peak, 875 Watts Continuous
  • DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance): LF: 750 Watts  HF: 125 Watts
  • DPC-2 Output Section: LF: Dual Bridged Technology™, Class D  HF: Bridged Class D
  • Audio Input connector: XLR with loop-through
  • LF Driver: 1x JVL22262FF 305mm (12") neodymium magnet Differential Drive with dual voice-coils and magnetic gaps.
  • HF Driver: 3x JBL 2408J, 38mm (1.5") voice-coil, neodymium magnet compression driver
  • User Controls: Input Attenuator (0-16 dB), ACS (Array Configuration Selector), HF level adjustment (+3dB, 0dB, -3dB)
  • Signal Processing: DSP Based, resident in Input Module
  • AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60 Hz
  • AC Input Connector: Neutrik PowerCon (NAC 3MPA)
  • AC Loop-thru: Neutrik PowerCon (NAC 3MPB)
  • AC Current Requirement: 6A per system at 120V, 3A per system at 240V
  • Enclosure: 25/15 mm, 11-ply birch plywood
  • Suspension/Mounting:OptionalVRX-AF line-array-frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting.
  • Finish: Black DuraFlex™ finish.
  • Grille: Powder-coated, black, 16-gauge perforated steel with acoustical transparent foam.
  • Dimensions (HxWxD): 13.75" x 23.5" x 17.5" (349 x 597 x 444 mm)
  • Net Weight: 52 lbs (24 kg)
  • Optional accessories:
    • VRX-AF array frame, eyebolt kit part #229-00009-01
    • SS2-BK: Tripod speaker stand
    • SS3-BK: Satellite speaker pole, 41" (1041 mm)
    • SS4-BK: Adjustable satellite speaker pole to be used with the VRX918S/P and SRX718S only.
