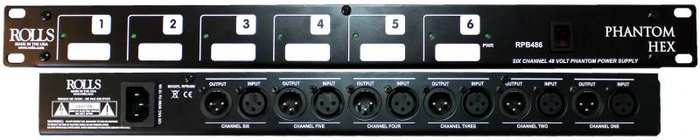

Rolls RPB486
Phantom Hex 6-Channel 48V Phantom Power Supply


Our Price: $125.00
List Price: $165.00
You save 24%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Rolls RPB486 Phantom Hex powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are XLR balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the RPB486 features pull-down resistors and isolation capacitors on all outputs.

Rolls RPB486 Features:

  • XLR Inputs and XLR Outputs
  • +48 Volt Regulated Phantom Power
  • LED “In Use” Indication
  • Perfect for digital multitrack use

Rolls RPB486 Specifications:

  • Input Connectors:  6 XLR Female jacks (pin 2 hot)
  • Output Connectors:  6 XLR Male jacks (pin 2 hot)
  •  Phantom Power Voltage:  48 Volts
  • Max Phantom Power Current:  14 mA each channel
  • Power Supply:  Linear 120VAC 50/60 Hz
  • Dimensions (WxHxD):  19" x 1.75" x 2.5" (48 cm x 4.5 cm x 12.7 cm)
  • Weight:  4 lbs
