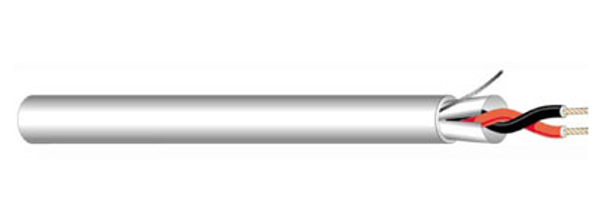

West Penn 25296B-1000
WIRE,2 Cond 12 (19x25)Bare Shl

OUR PART #  25296B-1000

Our Price: $449.42
List Price: $751.76
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The West Penn 25296B-1000 is a 12/2 Stranded bare copper conductors, shielded with an overall jacket. For use Indoors within ducts, plenums and other spaces used for environmental air for Intercom systems, security systems, sound, audio, and background music.

West Penn 25296B-1000 Specifications:

  • Construction Parameters:
    • Conductor: 12 AWG Bare Copper
    • Stranding: 19 x 25
    • Insulation Material: .010" Nominal
    • Number of Conductors: 2
    • Shield: 100% Aluminum Polyester Foil
    • Shield: Stranded Tinned Copper
    • Jacket Thickness: .015" Nominal
    • Overall Cable Diameter: .246" Nominal
    • Approximate Cable Weight: 54 lbs./1 M Nominal
    • Flame Rating: NFPA 262 Flame Test
  • Electrical and Environmental Properties
    • Temperature rating: -10°C to +60°C
    • Operating Voltage: 150 V RMS
    • Max. Capacitance Between Conductors @ 1 kHz: 88pf/ft. Nominal
    • Capacitance Between Conductors to Shield @ 1 kHz: 158pf/ft Nominal
    • DC Resistance per Conductor @ 20 deg C: 1.7 ohms/1m Nominal
    • Insulation Colors: Black, Red
    • Jacket Color: Gray
  • Mechanical Properties:
    • Max. Recommended Pull Tension: 161 lbs.
    • Min. Bend Radius (Install): 2.4"

Click to download

West Penn 25296B-1000
WIRE,2 Cond 12 (19x25)Bare Shl

OUR PART #  25296B-1000

Product Information:

The West Penn 25296B-1000 is a 12/2 Stranded bare copper conductors, shielded with an overall jacket. For use Indoors within ducts, plenums and other spaces used for environmental air for Intercom systems, security systems, sound, audio, and background music.

West Penn 25296B-1000 Specifications:

  • Construction Parameters:
    • Conductor: 12 AWG Bare Copper
    • Stranding: 19 x 25
    • Insulation Material: .010" Nominal
    • Number of Conductors: 2
    • Shield: 100% Aluminum Polyester Foil
    • Shield: Stranded Tinned Copper
    • Jacket Thickness: .015" Nominal
    • Overall Cable Diameter: .246" Nominal
    • Approximate Cable Weight: 54 lbs./1 M Nominal
    • Flame Rating: NFPA 262 Flame Test
  • Electrical and Environmental Properties
    • Temperature rating: -10°C to +60°C
    • Operating Voltage: 150 V RMS
    • Max. Capacitance Between Conductors @ 1 kHz: 88pf/ft. Nominal
    • Capacitance Between Conductors to Shield @ 1 kHz: 158pf/ft Nominal
    • DC Resistance per Conductor @ 20 deg C: 1.7 ohms/1m Nominal
    • Insulation Colors: Black, Red
    • Jacket Color: Gray
  • Mechanical Properties:
    • Max. Recommended Pull Tension: 161 lbs.
    • Min. Bend Radius (Install): 2.4"

Click to download
